1551XXGY
ActiveHammond Manufacturing
BOX ABS GRAY 3.15"L X 3.15"W
1551XXGY
ActiveHammond Manufacturing
BOX ABS GRAY 3.15"L X 3.15"W
Description
General part information
1551XXGY

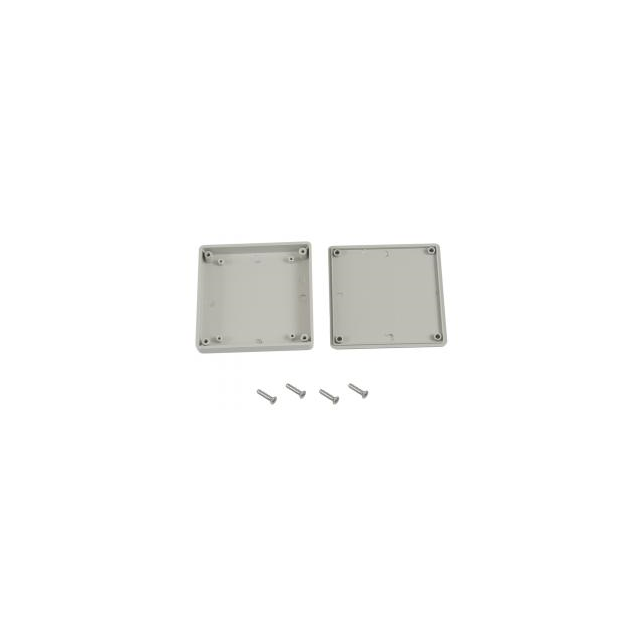

Box ABS Gray Hand Held, Cover Included 3.150" L x 3.150" W (80.01mm x 80.01mm) X 0.590" (14.99mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1551XXGY |
|---|---|
| Area (L x W) | 9.92 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included, Hand Held |
| Height | 0.59 in |
| Material | ABS |
| Material Flammability Rating | UL94 HB |
| Ratings | IP54 |
| Size / Dimension Length | 3.15 in |
| Size / Dimension Width | 3.15 in |
| Thickness | 0.08 in |
