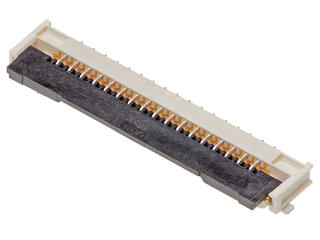

Specification	2005280170

Actuator Color	Black
Actuator Material	Nylon, Glass Filled, Polyamide (PA)
Cable End Type	Tabbed, Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Finish Thickness	1.97 µin
Contact Material	Phosphor Bronze
Current Rating	1 A
Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC, FPC
Height Above Board	0.075 in
Housing Color	Beige
Housing Material	Glass Filled, LCP, Liquid Crystal Polymer
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20 cycles
Mounting Type	Right Angle, Surface Mount
Number of Positions	17
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.039 in
Termination	Solder
Voltage Rating	125 V

200528 Series

FFC & FPC Connectors 1.0 FPC ZIF BTM CONT EMBT PKG 20Ckt

Part	Features	Cable End Type	FFC, FCB Thickness	Voltage Rating	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Connector/Contact Type	Contact Material	Contact Finish	Housing Material	Material Flammability Rating	Height Above Board	Flat Flex Type	Pitch	Actuator Material	Termination	Number of Positions	Locking Feature	Mating Cycles	Contact Finish Thickness	Housing Color	Actuator Color	Current Rating
Molex 2005280270	Solder Retention Zero Insertion Force (ZIF)	Straight Tabbed	0.3 mm	125 V	Right Angle Surface Mount	-40 °C	105 °C	Bottom Contacts	Phosphor Bronze	Gold	Glass Filled LCP Liquid Crystal Polymer	UL94 V-0	0.075 in	FFC FPC	0.039 in	Glass Filled Nylon Polyamide (PA)	Solder	27	Flip Lock
Molex 2005280110	Solder Retention Zero Insertion Force (ZIF)	Straight Tabbed	0.3 mm	125 V	Right Angle Surface Mount	-40 °C	105 °C	Bottom Contacts	Phosphor Bronze	Gold	Glass Filled LCP Liquid Crystal Polymer	UL94 V-0	0.075 in	FFC FPC	0.039 in	Glass Filled Nylon Polyamide (PA)	Solder	11	Flip Lock	20 cycles	1.97 µin	Beige	Black	1 A
Molex 2005280221	Solder Retention Zero Insertion Force (ZIF)	Straight Tapered	0.3 mm	125 V	Right Angle Surface Mount	-40 °C	150 °C	Bottom Contacts	Copper Alloy	Gold	LCP Liquid Crystal Polymer	UL94 V-0	0.075 in	FFC FPC	0.039 in	Glass Filled Liquid Crystal Polymer (LCP)	Solder	22	Flip Lock	20 cycles	1.97 µin	Beige	Black	1 A
Molex 2005280211	Solder Retention Zero Insertion Force (ZIF)	Straight Tabbed	0.3 mm	125 V	Right Angle Surface Mount	-40 °C	150 °C	Bottom Contacts	Copper Alloy	Gold	Glass Filled LCP Liquid Crystal Polymer	UL94 V-0	0.075 in	FFC FPC	0.039 in	Glass Filled Nylon Polyamide (PA)	Solder	21	Flip Lock
Molex 2005280250	Solder Retention Zero Insertion Force (ZIF)	Straight Tabbed	0.3 mm	125 V	Right Angle Surface Mount	-40 °C	105 °C	Bottom Contacts	Phosphor Bronze	Gold	Glass Filled LCP Liquid Crystal Polymer	UL94 V-0	0.075 in	FFC FPC	0.039 in	Glass Filled Nylon Polyamide (PA)	Solder	25	Flip Lock
Molex 2005280271	Solder Retention Zero Insertion Force (ZIF)	Straight Tabbed	0.3 mm	125 V	Right Angle Surface Mount	-40 °C	150 °C	Bottom Contacts	Copper Alloy	Gold	Glass Filled LCP Liquid Crystal Polymer	UL94 V-0	0.075 in	FFC FPC	0.039 in	Glass Filled Nylon Polyamide (PA)	Solder	27	Flip Lock	20 cycles	1.97 µin	Beige	Black	1 A
Molex 2005280051	Solder Retention Zero Insertion Force (ZIF)	Straight Tabbed	0.3 mm	125 V	Right Angle Surface Mount	-40 °C	150 °C	Bottom Contacts	Copper Alloy	Gold	Glass Filled LCP Liquid Crystal Polymer	UL94 V-0	0.075 in	FFC FPC	0.039 in	Glass Filled Liquid Crystal Polymer (LCP)	Solder	5	Flip Lock	20 cycles	1.97 µin	Beige	Black	1 A
Molex 2005280151	Solder Retention Zero Insertion Force (ZIF)	Straight Tabbed	0.3 mm	125 V	Right Angle Surface Mount	-40 °C	150 °C	Bottom Contacts	Copper Alloy	Gold	Glass Filled LCP Liquid Crystal Polymer	UL94 V-0	0.075 in	FFC FPC	0.039 in	Glass Filled Nylon Polyamide (PA)	Solder	15	Flip Lock	20 cycles	1.97 µin	Beige	Black	1 A
Molex 2005280140	Solder Retention Zero Insertion Force (ZIF)	Straight Tabbed	0.3 mm	125 V	Right Angle Surface Mount	-40 °C	105 °C	Bottom Contacts	Phosphor Bronze	Gold	Glass Filled LCP Liquid Crystal Polymer	UL94 V-0	0.075 in	FFC FPC	0.039 in	Glass Filled Nylon Polyamide (PA)	Solder	14	Flip Lock	20 cycles	2 µin	Beige	Black	1 A
Molex 2005280220	Solder Retention Zero Insertion Force (ZIF)	Straight Tabbed	0.3 mm	125 V	Right Angle Surface Mount	-40 °C	105 °C	Bottom Contacts	Phosphor Bronze	Gold	Glass Filled LCP Liquid Crystal Polymer	UL94 V-0	0.075 in	FFC FPC	0.039 in	Glass Filled Nylon Polyamide (PA)	Solder	22	Flip Lock	20 cycles	1.97 µin	Beige	Black	1 A
