4-1393637-6
ActiveTE Connectivity AMP Connectors
CONN DIN RCPT 96POS PCB GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4-1393637-6 | 1393637 Series |
|---|---|---|
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish | Gold, Gold-Palladium | Gold, Gold-Palladium |
| Material - Insulation | Glass Filled, Polyester, Polybutylene Terephthalate (PBT) | Glass Filled, Polyester, Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 96 | 48 - 96 |
| Number of Positions | - | 78 |
| Number of Positions | - | 2 |
| Number of Positions Loaded | All | All |
| Number of Positions Loaded | - | 64 - 78 |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Style | C | C, C/2, M |
| Style | - | 1/2 C |
| Termination | Press-Fit | Wire Wrap, Press-Fit |
1393637 Series
CONN DIN RCPT 96POS PCB GOLD
| Part | Mounting Type | Number of Rows | Material - Insulation | Connector Type | Pitch [x] | Pitch [x] | Material Flammability Rating | Contact Finish | Style | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Number of Positions Loaded | Style | Number of Positions Loaded | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 7-1393637-3 | Through Hole | 3 | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | Receptacle, Female Sockets | 2.54 mm | 0.1 in | UL94 V-0 | Gold, Gold-Palladium | C | Press-Fit, Wire Wrap | -55 °C | 125 °C | 96 | All | ||||
TE Connectivity AMP Connectors 4-1393637-4 | Through Hole | 3 | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | Receptacle, Female Sockets | 2.54 mm | 0.1 in | UL94 V-0 | Gold, Gold-Palladium | C/2 | Press-Fit | -55 °C | 125 °C | 48 | All | 1/2 C | |||
TE Connectivity AMP Connectors 2-1393637-9 | Through Hole | 3 | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | Receptacle, Female Sockets | 2.54 mm | 0.1 in | UL94 V-0 | Gold, Gold-Palladium | C | Press-Fit, Wire Wrap | -55 °C | 125 °C | 96 | All | ||||
TE Connectivity AMP Connectors 4-1393637-6 | Through Hole | 3 | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | Receptacle, Female Sockets | 2.54 mm | 0.1 in | UL94 V-0 | Gold, Gold-Palladium | C | Press-Fit | -55 °C | 125 °C | 96 | All | ||||
TE Connectivity AMP Connectors 6-1393637-0 | Through Hole | 3 | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | Receptacle, Female Sockets | 2.54 mm | 0.1 in | UL94 V-0 | Gold, Gold-Palladium | M | Press-Fit | -55 °C | 125 °C | 78 | 78 | 2 | |||
TE Connectivity AMP Connectors 4-1393637-9 | Through Hole | 3 | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | Receptacle, Female Sockets | 2.54 mm | 0.1 in | UL94 V-0 | Gold, Gold-Palladium | C | Press-Fit | -55 °C | 125 °C | 96 | 64 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.12 | |
| 10 | $ 7.95 | |||
| 25 | $ 7.74 | |||
| 50 | $ 7.53 | |||
| 100 | $ 7.07 | |||
| 300 | $ 7.03 | |||
| 500 | $ 6.61 | |||
| 1000 | $ 5.90 | |||
Description
General part information
1393637 Series

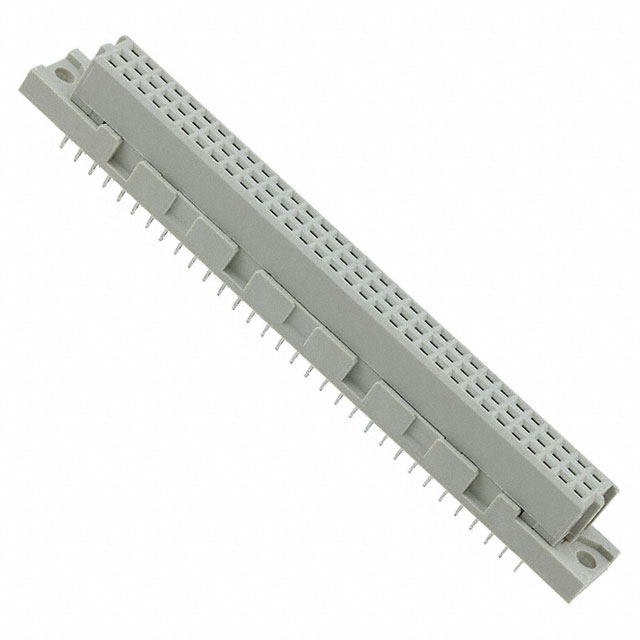

96 Position Din Connector Receptacle, Female Sockets Gold or Gold-Palladium Through Hole
Documents
Technical documentation and resources
