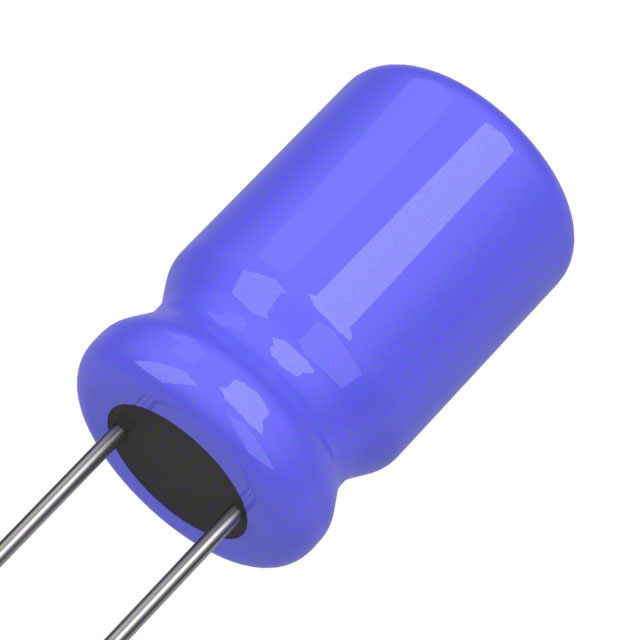

678D476M050CC3D
ActiveVishay Dale
CAP ALUMINUM LYTIC 47UF 50V 20% (10 X 13MM) RADIAL 5MM 1.25 OHM 0.28A 3000H 105°C BULK
678D476M050CC3D
ActiveVishay Dale
CAP ALUMINUM LYTIC 47UF 50V 20% (10 X 13MM) RADIAL 5MM 1.25 OHM 0.28A 3000H 105°C BULK
Description
General part information
678D476M050CC3D
47 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 1.25Ohm @ 20Hz 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 678D476M050CC3D |
|---|---|
| Applications | General Purpose |
| Capacitance | 47 µF |
| ESR (Equivalent Series Resistance) | 1.25 Ohm |
| Height - Seated (Max) | 0.63 in |
| Impedance | 275 mOhms |
| Lead Spacing | 0.197 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 196 mA, 280 mA |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 50 V |
