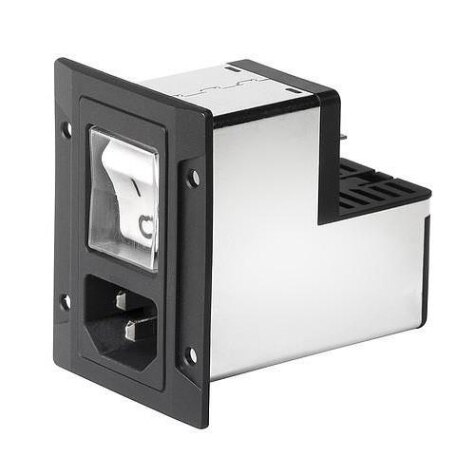

3-118-974
ActiveSCHURTER Inc.
POWER ENTRY MODULE FILTERED M 3 POS 250VACVAC 10A SWITCH ST 1 PORT
3-118-974
ActiveSCHURTER Inc.
POWER ENTRY MODULE FILTERED M 3 POS 250VACVAC 10A SWITCH ST 1 PORT
Description
General part information
3-118-974
POWER ENTRY MODULE FILTERED M 3 POS 250VACVAC 10A SWITCH ST 1 PORT
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-118-974 |
|---|---|
| Accomodates a Fuse | No |
| Approval Agency | ENEC, cURus |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades - Module, Receptacle |
| Current Rating - Appliance Inlet | 10 A |
| Current Rating - Circuit Breaker | 10 A |
| Current Rating - Filter | 10 A |
| Filter Application | Commercial |
| Filter Subtype | EMI, RFI |
| Filter Type | Filtered |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 3 |
| Panel Cutout Length | 34.3 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 59 mm |
| Panel Thickness | 0.315 in |
| Switch Features | Switch On-Off, Circuit Breaker |
| Termination | Quick Connect |
| Termination Probe Tip OD | 0.25 in |
| Voltage Rating - Appliance Inlet | 250 VAC |
