AP72200CT20-7
ActiveCONV DC-DC BUCK-BOOST 2.3V TO 5.5V 20-BALLS WLCSP T/R
AP72200CT20-7
ActiveCONV DC-DC BUCK-BOOST 2.3V TO 5.5V 20-BALLS WLCSP T/R
Description
General part information
AP72200CT20-7
The AP72200 is a high current synchronous buck-boost converter providing high efficiency, excellent transient response and high DC output accuracy. The targeted applications are smartphones, tablets, and other handheld devices. The AP72200 utilizes a four switches H-bridge configuration to support buck and boost operation. The buck-boost provides at least 2A output current.
Technical Specifications
Parameters and characteristics for this part

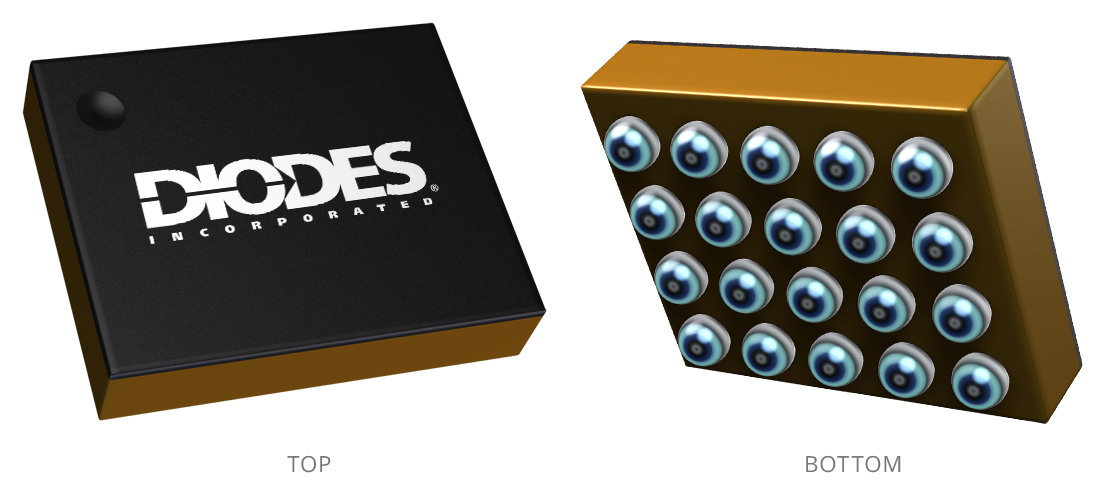

| Specification | AP72200CT20-7 |
|---|---|
| Current - Output | 2 A |
| Frequency - Switching | 2.5 MHz |
| Function | Step-Up, Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | WLBGA, 20-WFBGA |
| Package Name | W-WLB2118-20 |
| Synchronous Rectifier | Yes |
| Topology | Buck, Boost |
| Voltage - Input (Max) | 5.5 V |
| Voltage - Input (Min) | 2.3 V |
| Voltage - Output (Max) | 5.14 V |
| Voltage - Output (Min/Fixed) | 2.6 V |
