3-770565-2

Active

TE Connectivity AMP Connectors

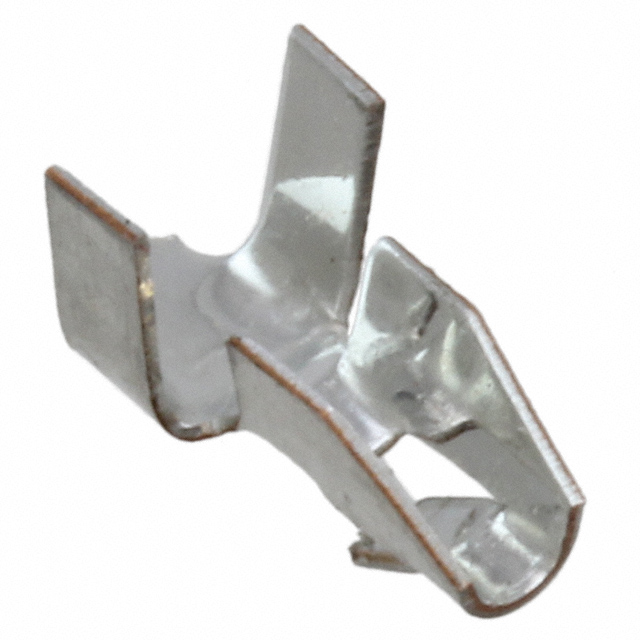

CONN TERM WTB 18-22AWG TIN

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN TERM WTB 18-22AWG TIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-770565-2	770565 Series

Contact Finish	Tin	Tin-Lead, Tin
Contact Material	Phosphor Bronze	Phosphor Bronze
Hole Diameter [Max]	0.077 in	0.077 in
Hole Diameter [Max]	1.96 mm	1.96 mm
Hole Diameter [Min]	1.83 mm	1.83 mm
Hole Diameter [Min]	0.072 in	0.072 in
Insulation Diameter [Max] [diameter]	2.79 mm	2.79 mm
Insulation Diameter [Max] [diameter]	0.11 "	0.11 "
Insulation Diameter [Min] [diameter]	1.52 mm	1.52 mm
Insulation Diameter [Min] [diameter]	0.06 in	0.06 in
Length - Overall [x]	5.59 mm	5.59 mm
Length - Overall [x]	0.22 in	0.22 in
Terminal Type	Locking, Through Board	Locking, Through Board
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

CONN TERM WTB 18-22AWG TIN/LEAD

Part	Hole Diameter [Min]	Hole Diameter [Max]	Hole Diameter [Min]	Hole Diameter [Max]	Contact Finish	Terminal Type	Contact Material	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]
TE Connectivity AMP Connectors 770565-2	1.83 mm	0.077 in	0.072 in	1.96 mm	Tin-Lead	Locking, Through Board	Phosphor Bronze	5.59 mm	0.22 in	22 AWG	17.5 AWG	2.79 mm	0.11 "	1.52 mm	0.06 in
TE Connectivity AMP Connectors 3-770565-2	1.83 mm	0.077 in	0.072 in	1.96 mm	Tin	Locking, Through Board	Phosphor Bronze	5.59 mm	0.22 in	22 AWG	17.5 AWG	2.79 mm	0.11 "	1.52 mm	0.06 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

WTB Tin Terminal Connector 18-22 AWG
