G30060-1CR
ActiveEaton - Electronics Division
FUSEHOLDER, FUSE BLOCK, 480V, 60A, CLASS G, BOX LUGS, RETAINING CLIP, 1 POLE
G30060-1CR
ActiveEaton - Electronics Division
FUSEHOLDER, FUSE BLOCK, 480V, 60A, CLASS G, BOX LUGS, RETAINING CLIP, 1 POLE
Description
General part information
G30060-1CR

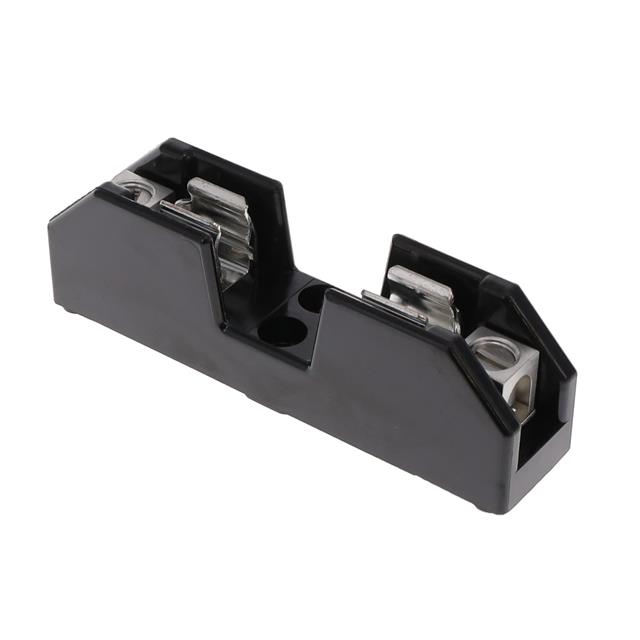

The G30060-1CR is a 1-pole 60A/480VAC Cartridge Fuse Block with screw terminals, box lug and retaining clip. Accepts #2 to #14 Cu and #2 to #8 Al wire range. This G-series fuse block for use with class-G Bussmann SC fuses.
Technical Specifications
Parameters and characteristics for this part
| Specification | G30060-1CR |
|---|---|
| Contact Material | Copper |
| Current Rating | 60 A |
| For Use With/Related Products | Class G Fuses, 13/32" x 2-1/4" |
| Fuse Diameter | 0.394 in |
| Fuse Length | 2.25 in |
| Fuse Type | Cartridge |
| Fuseholder Type | Block |
| Mounting Type | Chassis Mount |
| Number of Circuits | 1 |
| Termination Style | Box Lug |
| Voltage | 480 V |
