9001KP1G9
ActiveSCHNEIDER ELECTRIC

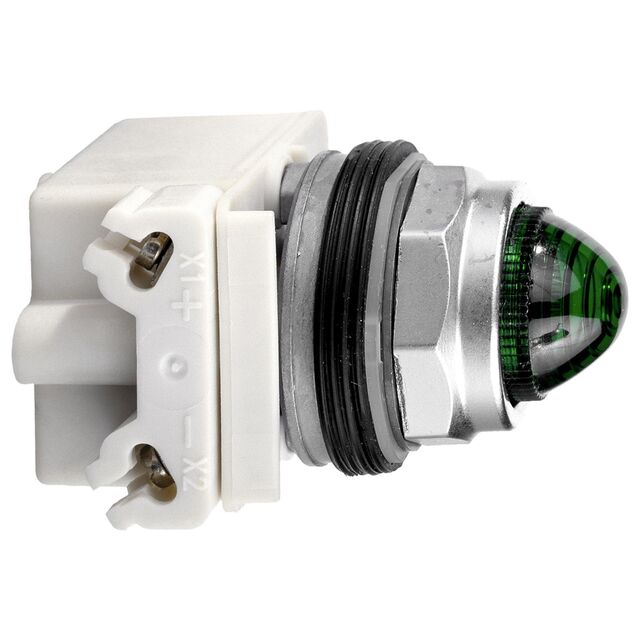

INCANDESCENT LAMP, BA9S, 30 MM, 120 VAC, DOME, HARMONY 9001K SERIES
9001KP1G9
ActiveSCHNEIDER ELECTRIC
INCANDESCENT LAMP, BA9S, 30 MM, 120 VAC, DOME, HARMONY 9001K SERIES
Description
General part information
9001KP1G9
Incandescent Panel Indicator 110V ~ 120V Screw Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001KP1G9 |
|---|---|
| Ingress Protection | 2, 6, IP66, 1, 13, 4, 3, NEMA 3R, 12 |
| Lens Color | Green |
| Lens Diameter | 30 mm |
| Lens Style | Round, Domed Top |
| Panel Cutout Dimension | 1.18 " |
| Panel Cutout Shape | Round |
| Ratings | AC |
| Termination Style | Screw Terminal |
| Type | Incandescent |
| Voltage (Max) | 120 V |
| Voltage (Min) | 110 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
