BC-ATP-354516

Active

Boxco

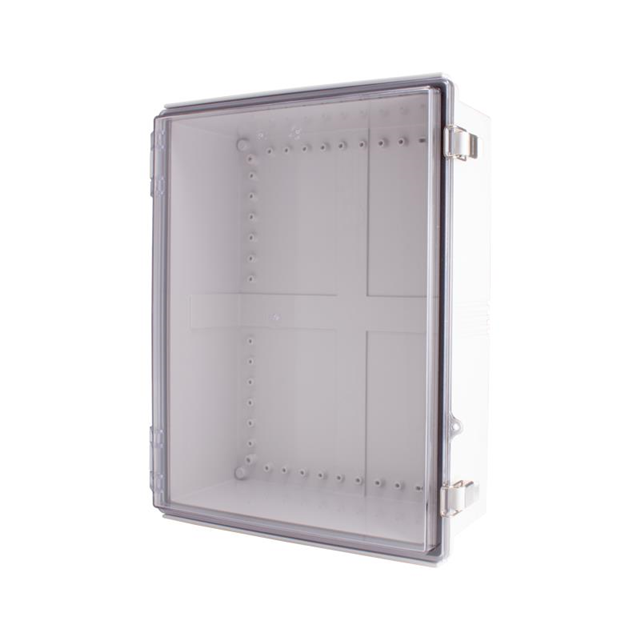

BOX ABS CLEAR 17.72"L X 13.78"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BC-ATP-354516

Active

Boxco

BOX ABS CLEAR 17.72"L X 13.78"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BC-ATP Series

Box Plastic, ABS Body, Polycarbonate Cover Light Gray, Clear Cover Hinged Door, Stainless Steel Latch 17.717" L x 13.780" W (450.00mm x 350.00mm) X 6.299" (160.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BC-ATP-354516	BC-ATP Series

Area (L x W)	244 in˛	23.3 - 244 in²
Area (L x W)	1575 cm˛	150 - 1575 cm²
Area (L x W)	-	1200 cm²
Area (L x W)	-	186 in²
Area (L x W)	-	68.4 in˛
Color	Light Gray, Clear Cover	Light Gray, Clear Cover
Container Type	Box	Box
Design	Stainless Steel Latch, Hinged Door	Stainless Steel Latch, Hinged Door
Features	Latches, Hinged, Lockable, Sealing Gasket	Latches, Hinged, Lockable, Sealing Gasket
Height	-	150 mm
Height [z]	6.299 in	2.756 - 6.299 "
Height [z]	160 mm	5.906 - 160 in
Material	ABS Body, Plastic, Polycarbonate Cover	ABS Body, Plastic, Polycarbonate Cover
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	NEMA 4X, NEMA 6, IP66, IP67	NEMA 4X, NEMA 6, IP66, IP67
Size / Dimension	-	135 mm
Size / Dimension [x]	17.717 in	5.906 - 17.717 "
Size / Dimension [x]	450 mm	150 - 450 mm
Size / Dimension [y]	350 mm	100 - 350 mm
Size / Dimension [y]	13.78 in	3.937 - 13.78 "
Thickness	0.146 in	0.146 in
Thickness	3.7 mm	3.7 mm

BC-ATP Series

BOX ABS CLEAR 15.75"L X 11.81"W

Part	Material Flammability Rating	Height [z]	Height [z]	Design	Ratings	Container Type	Area (L x W) [custom]	Area (L x W) [custom]	Color	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Features	Height [z]	Area (L x W)	Area (L x W)	Size / Dimension [y]	Thickness	Thickness	Area (L x W) [custom]
Boxco BC-ATP-304015	UL94 HB	5.906 in	150 mm	Hinged Door, Stainless Steel Latch	IP66, IP67, NEMA 4X, NEMA 6	Box	1200 cm²	186 in²	Clear Cover, Light Gray	ABS Body, Plastic, Polycarbonate Cover	400 mm	11.811 "	300 mm	15.748 "	Hinged, Latches, Lockable, Sealing Gasket
Boxco BC-ATP-101507	UL94 HB	70 mm		Hinged Door, Stainless Steel Latch	IP66, IP67, NEMA 4X, NEMA 6	Box			Clear Cover, Light Gray	ABS Body, Plastic, Polycarbonate Cover	150 mm	3.937 in	100 mm	5.906 in	Hinged, Latches, Lockable, Sealing Gasket	2.756 "	23.3 in²	150 cm²
Boxco BC-ATP-131508	UL94 HB	85 mm		Hinged Door, Stainless Steel Latch	IP66, IP67, NEMA 4X, NEMA 6	Box			Clear Cover, Light Gray	ABS Body, Plastic, Polycarbonate Cover	155 mm	5.315 in		6.102 in	Hinged, Latches, Lockable, Sealing Gasket	3.346 in	32.4 in˛	209 cm˛	135 mm
Boxco BC-ATP-354516	UL94 HB	160 mm		Hinged Door, Stainless Steel Latch	IP66, IP67, NEMA 4X, NEMA 6	Box			Clear Cover, Light Gray	ABS Body, Plastic, Polycarbonate Cover	450 mm	13.78 in	350 mm	17.717 in	Hinged, Latches, Lockable, Sealing Gasket	6.299 in	244 in˛	1575 cm˛		0.146 in	3.7 mm
Boxco BC-ATP-212113	UL94 HB	130 mm		Hinged Door, Stainless Steel Latch	IP66, IP67, NEMA 4X, NEMA 6	Box			Clear Cover, Light Gray	ABS Body, Plastic, Polycarbonate Cover	210 mm	8.268 in	210 mm	8.268 in	Hinged, Latches, Lockable, Sealing Gasket	5.118 in		441 cm˛				68.4 in˛
Boxco BC-ATP-131808	UL94 HB	85 mm		Hinged Door, Stainless Steel Latch	IP66, IP67, NEMA 4X, NEMA 6	Box			Clear Cover, Light Gray	ABS Body, Plastic, Polycarbonate Cover	185 mm	5.315 in	135 mm	7.283 in	Hinged, Latches, Lockable, Sealing Gasket	3.346 in	38.7 in˛	250 cm˛
Boxco BC-ATP-172211	UL94 HB			Hinged Door, Stainless Steel Latch	IP66, IP67, NEMA 4X, NEMA 6	Box			Clear Cover, Light Gray	ABS Body, Plastic, Polycarbonate Cover	220 mm	6.693 "	170 mm	8.661 in	Hinged, Latches, Lockable, Sealing Gasket		58 in²	374 cm²
Boxco BC-ATP-354520	UL94 HB			Hinged Door, Stainless Steel Latch	IP66, IP67, NEMA 4X, NEMA 6	Box			Clear Cover, Light Gray	ABS Body, Plastic, Polycarbonate Cover	450 mm	13.78 in	350 mm	17.717 in	Hinged, Latches, Lockable, Sealing Gasket		244 in˛	1575 cm˛		0.146 in	3.7 mm
