53D500F250GE6
ActiveVishay Dale
ELECTROLYTIC CAPACITOR, 50 ΜF, 250 V, -10%, +50%, POLAR
53D500F250GE6
ActiveVishay Dale
ELECTROLYTIC CAPACITOR, 50 ΜF, 250 V, -10%, +50%, POLAR
Description
General part information
53D500F250GE6

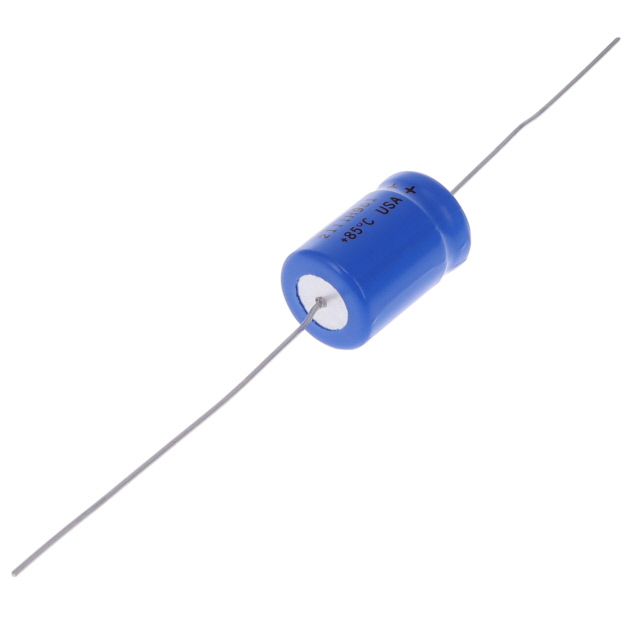

50 µF 250 V Aluminum Electrolytic Capacitors Axial, Can 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 53D500F250GE6 |
|---|---|
| Applications | General Purpose |
| Capacitance | 50 µF |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Size / Dimension Diameter | 0.76 in |
| Size / Dimension Length | 1.142 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
