Description
General part information

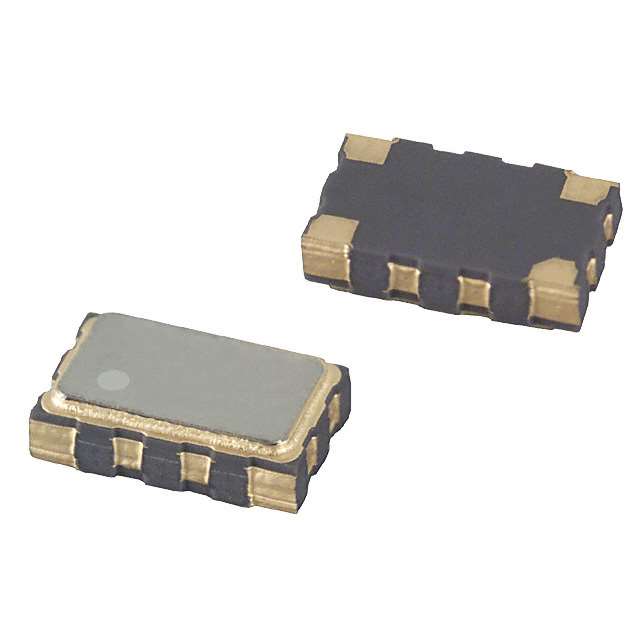

VC-TXO-35SM-120-B-TR
12 MHz VCTCXO Clipped Sine Wave Oscillator 3V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | VC-TXO-35SM-120-B-TR |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 1.5 mA |
| Frequency | 12 MHz |
| Frequency Stability | 2.5 ppm |
| Height - Seated (Max) | 0.059 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -30 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Package Length | 5 mm |
| Package Name | 4-SMD |
| Package Width | 3.2 mm |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | VCTCXO |
| Voltage - Supply | 3 V |
