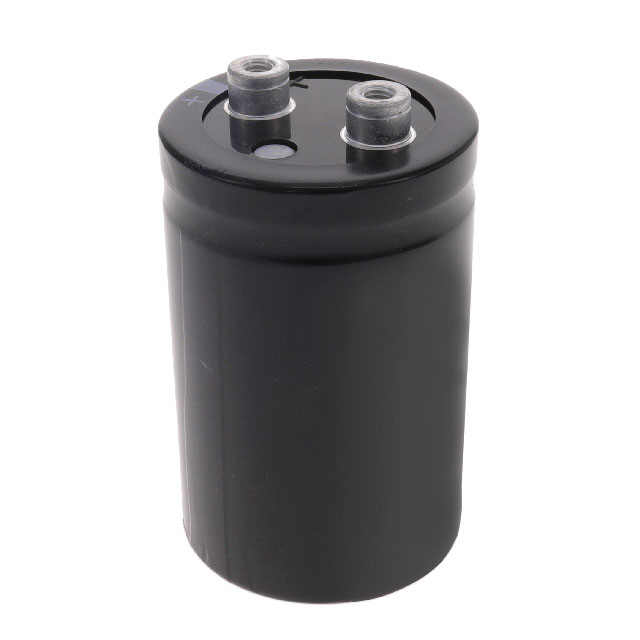

Specification	B43713A9188M000

Applications	General Purpose
Capacitance	1800 µF
ESR (Equivalent Series Resistance)	70 mOhm
Height - Seated (Max)	3.846 in
Lead Spacing	0.874 in
Lifetime	15000 Hrs
Mounting Type	Chassis Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Ripple Current	7.33 A
Size / Dimension Diameter	2.031 in
Tolerance	20 %
Voltage - Rated	400 V
