Description
General part information
FIT0577

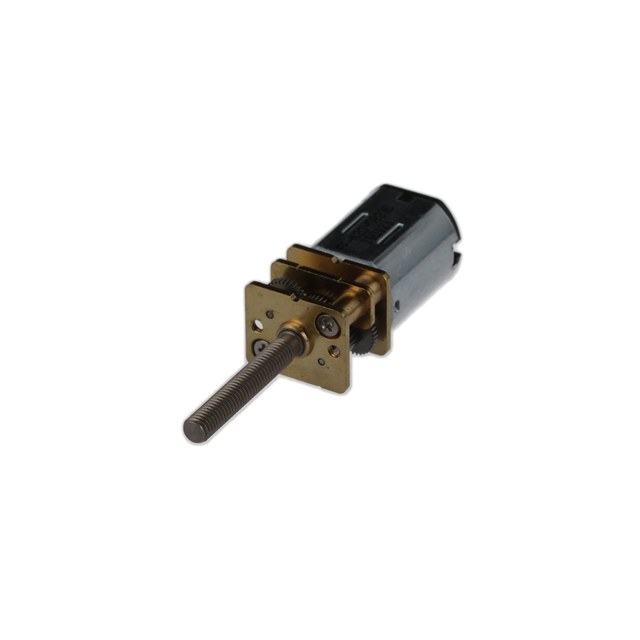

DC Motor Gearmotor 98 RPM 6VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | FIT0577 |
|---|---|
| Diameter - Shaft | 0.118 in |
| Function | Gearmotor |
| Gear Reduction Ratio | 150 |
| Length - Shaft and Bearing | 0.787 in |
| RPM | 98 RPM |
| Size / Dimension Length | 0.472 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.394 in |
| Termination Style | Solder Tab |
| Torque - Rated (mNm) | 53.94 mNm |
| Torque - Rated (oz-in) | 7.64 oz-in |
| Type | DC Motor |
| Voltage - Rated | 6 VDC |
