T4161320008-007
ActiveTE Connectivity AMP Connectors

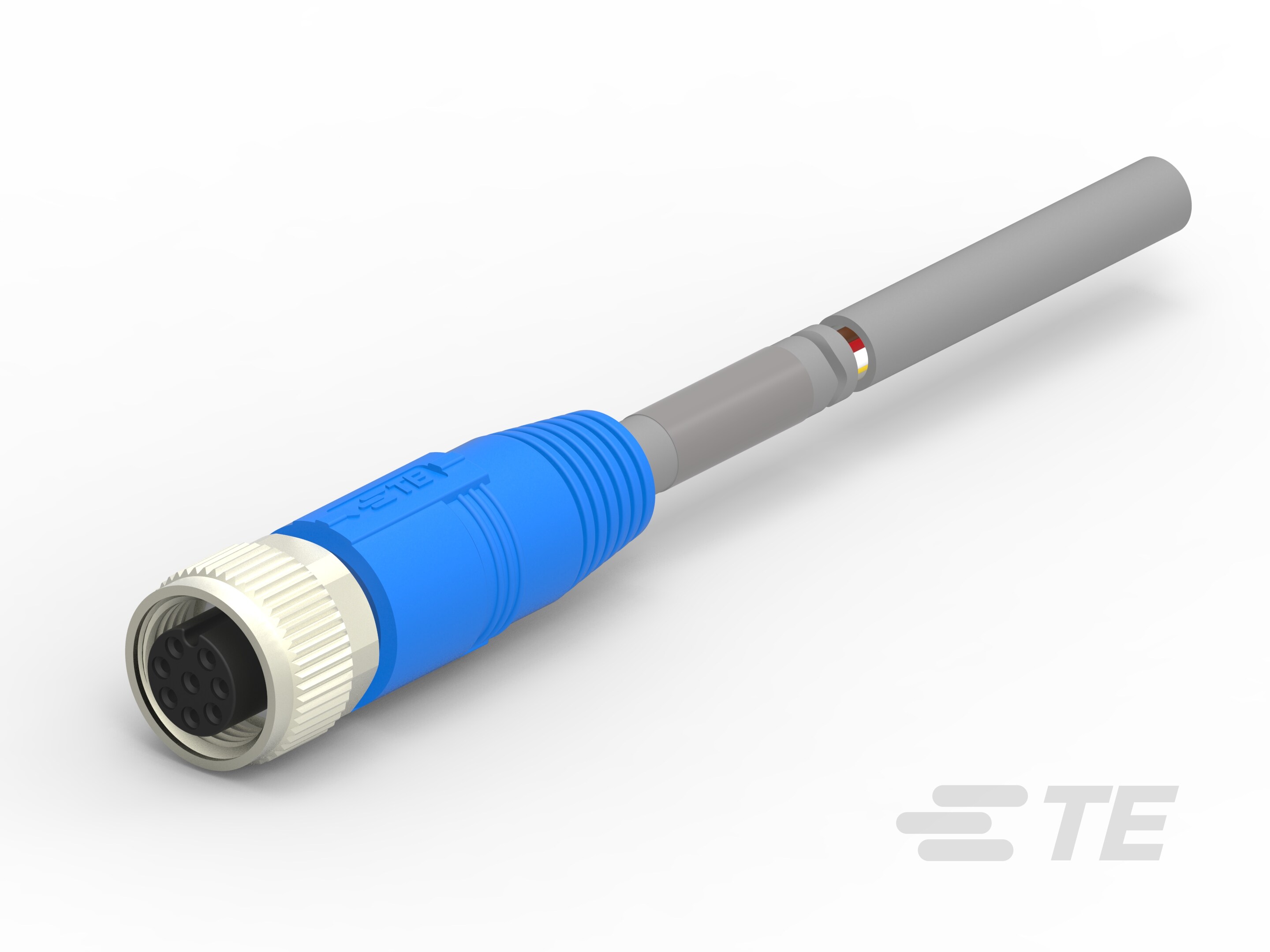

SENSOR CABLE, SHIELDED, M12 RECEPTACLE, FREE END, 8 POSITIONS, 10 M, 32.8 FT, T416 SERIES
T4161320008-007
ActiveTE Connectivity AMP Connectors
SENSOR CABLE, SHIELDED, M12 RECEPTACLE, FREE END, 8 POSITIONS, 10 M, 32.8 FT, T416 SERIES
Description
General part information
T4161320008-007
M12 Pigtail Cable Assembly, 8 Position, Cable Assembly Length 10 m [32.8 ft], Sensor/Actuator, A Code, M12 Socket End A, Shielded, Single Ended
Technical Specifications
Parameters and characteristics for this part
| Specification | T4161320008-007 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 8 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Gray |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 32.8 ft |
| Shielding | Shielded |
| Usage | Industrial Environments |
