Description
General part information
FIT0417

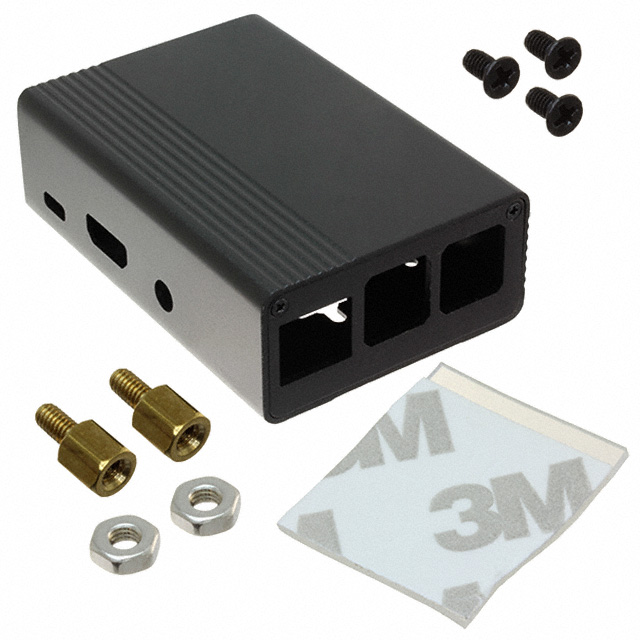

Case Metal, Aluminum Black Hand Held, End Panel and Cover 4.055" L x 1.614" W (103.00mm x 41.00mm) X 1.614" (41.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FIT0417 |
|---|---|
| Area (L x W) | 6.55 in² |
| Color | Black |
| Container Type | Case |
| Design | End Panel, Cover, Hand Held |
| Features | PCB Supports |
| Height | 1.614 in |
| Material | Metal, Aluminum |
| Note | Evaluation, Development board not included with enclosure |
| Platform | 3B, 2B, Raspberry Pi B+ |
| Size / Dimension Length | 4.055 in |
| Size / Dimension Width | 1.614 in |
| Weight | 0.22 lb |
