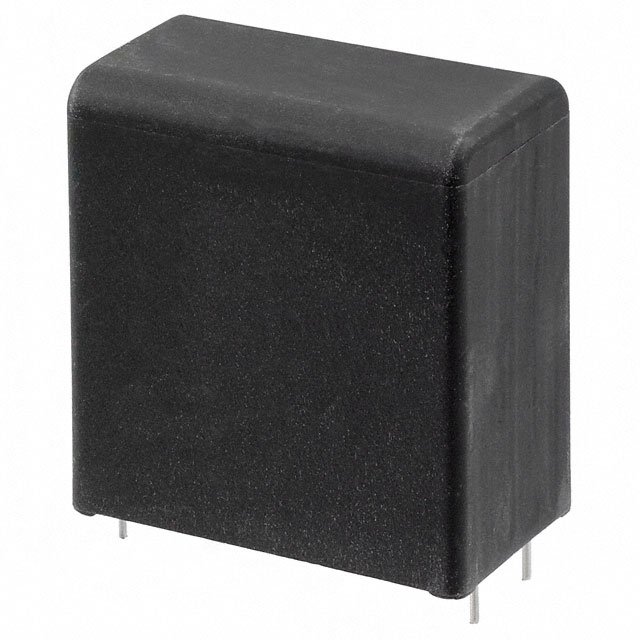

Specification	MKP1848C64560JY4

Applications	DC Filtering, DC Link
Capacitance	45 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	6 mOhm
Features	Low ESL, Long Life, Low ESR
Height - Seated (Max)	1.772 in
Lead Spacing	2.067 in
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package Leads	4 Leads
Package Name	Radial
Size / Dimension Length	2.264 in
Size / Dimension Width	0.984 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - DC	600 V
