Description
General part information
WRL-13678

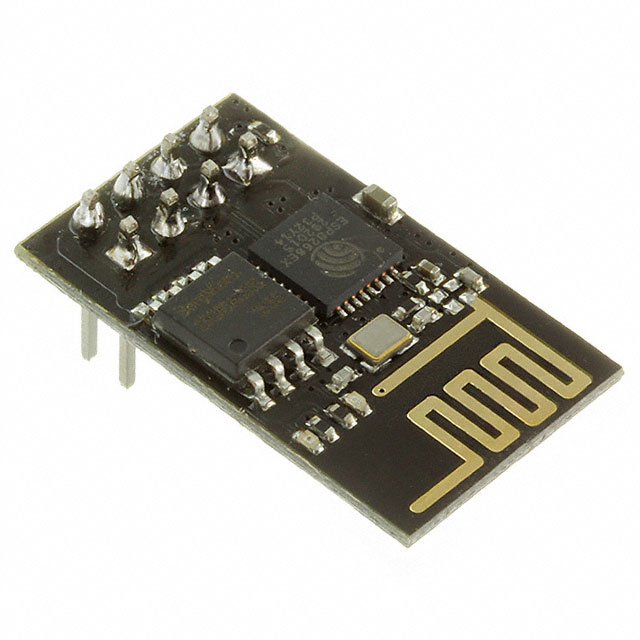

WiFi 802.11b/g/n Transceiver Module 2.4GHz ~ 2.48GHz Integrated, Trace Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | WRL-13678 |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving | 62 mA |
| Current - Transmitting | 215 mA |
| Data Rate | 72.2 Mbps |
| Frequency (Max) | 2.48 GHz |
| Frequency (Min) | 2.4 GHz |
| Memory Size (Flash) | 1 MB |
| Memory Type | Flash |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | Module |
| Power - Output | 19.5 dBm |
| Protocol | 802.11n, 802.11b, 802.11g |
| RF Family/Standard | WiFi |
| Sensitivity | -98 dBm |
| Serial Interfaces | UART |
| Utilized IC / Part | ESP8266 |
| Voltage - Supply | 3.3 V |
