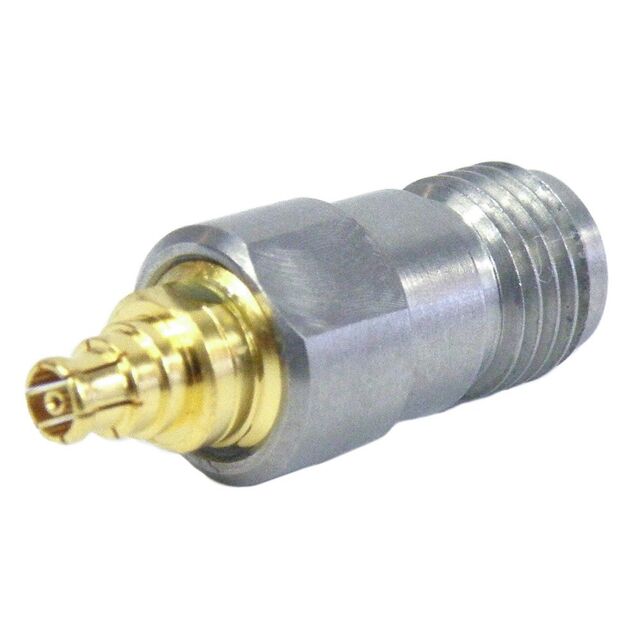

SM8902
ActiveFairview Microwave
ADAPT JACK-JACK SMA SS 1.2 VSWR
SM8902
ActiveFairview Microwave
ADAPT JACK-JACK SMA SS 1.2 VSWR
Description
General part information
SM8902
Adapter Coaxial Connector SMA Jack, Female Socket To SMP Mini Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM8902 |
|---|---|
| Adapter Series | SMP, Mini to SMA |
| Adapter Type | Jack to Jack |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMA Jack, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | SMP Mini Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max | 26.5 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Style | Straight |
