CM7060W101R-10
ActiveLaird Technologies EMI
CMC 9A 2LN 140 OHM SMD
CM7060W101R-10
ActiveLaird Technologies EMI
CMC 9A 2LN 140 OHM SMD
Description
General part information

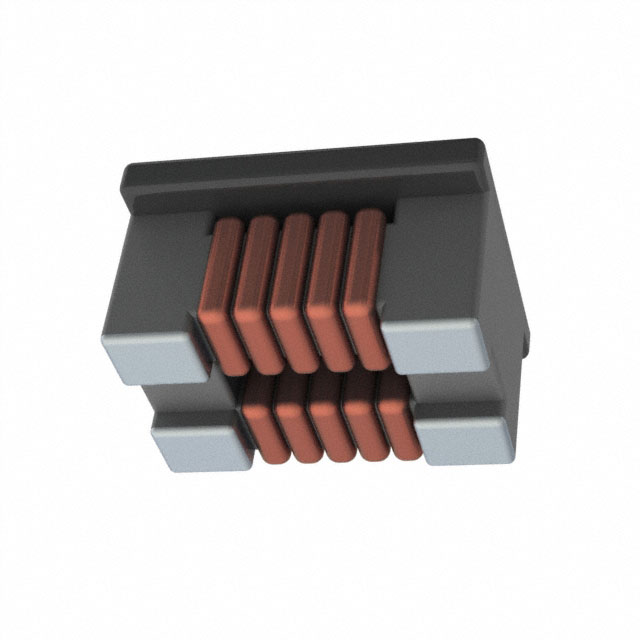

CM7060W101R-10
2 Line Common Mode Choke Surface Mount 140 Ohms @ 100 MHz 9A DCR 10mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CM7060W101R-10 |
|---|---|
| Current Rating (Max) | 9 A |
| DC Resistance (DCR) (Max) | 10 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.15 in |
| Impedance | 140 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.236 in |
| Voltage Rating - DC | 80 VDC |
