Description
General part information

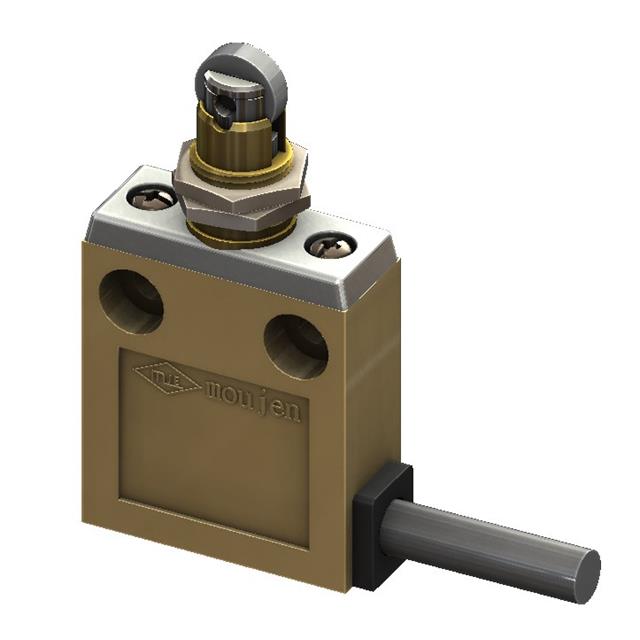

M4-4311S-Z2L
Switch SPDT Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | M4-4311S-Z2L |
|---|---|
| Actuator Type | Roller Plunger |
| Circuit | SPDT |
| Current Rating | 400 mA, 5 A |
| Differential Travel (Linear) | 0.008 in |
| Electrical Life (Cycles) | 200000 |
| Ingress Protection Description | Oil Resistant, Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP67F |
| Mechanical Life (Cycles) | 2000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 1200 gf |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Overtravel (Linear) | 0.118 in |
| Pretravel (Length) | 0.071 in |
| Release Force | 450 gf |
| Switch Function | On-Mom |
| Termination Style | Cable Leads |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
