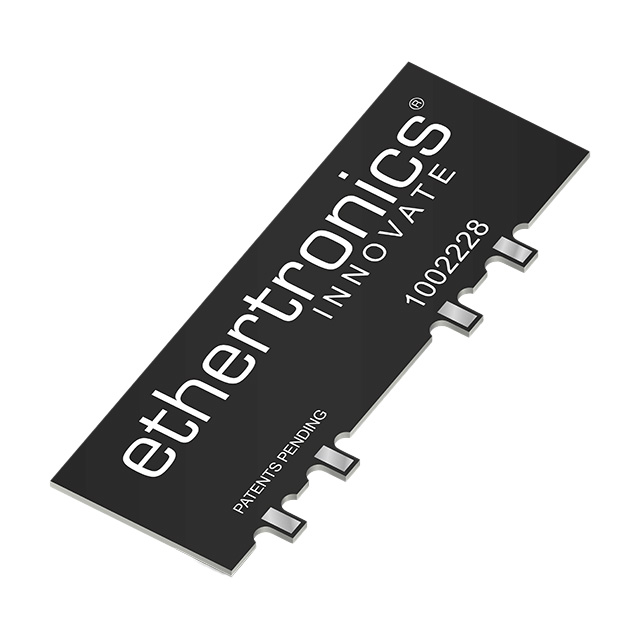

1002228
ActiveKYOCERA AVX
DUAL-FEED ISM & WI-FI/BLUETOOTH
1002228
ActiveKYOCERA AVX
DUAL-FEED ISM & WI-FI/BLUETOOTH
Description
General part information
1002228
RF ANTENNA ISM, LoRa, Sigfox Chip Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 1002228 |
|---|---|
| Antenna Type | Chip |
| Applications | LoRa, ISM, Sigfox |
| Frequency (Center/Band) | 868MHz, 2.4GHz, 915MHz |
| Frequency Group | Wide Band |
| Gain | 0 dBi, 4 dBi, -1 dBi |
| Height (Max) | 0.063 in |
| Mounting Type | Solder |
| Number of Bands | 3 |
| Power - Max | 2 VA |
| Return Loss | -12dB, -15dB, -5dB |
| Return Loss | -5 dB, -15 dB, -12 dB |
| RF Family/Standard | Cellular, General ISM |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
