1217068-1
ActiveTE Connectivity AMP Connectors

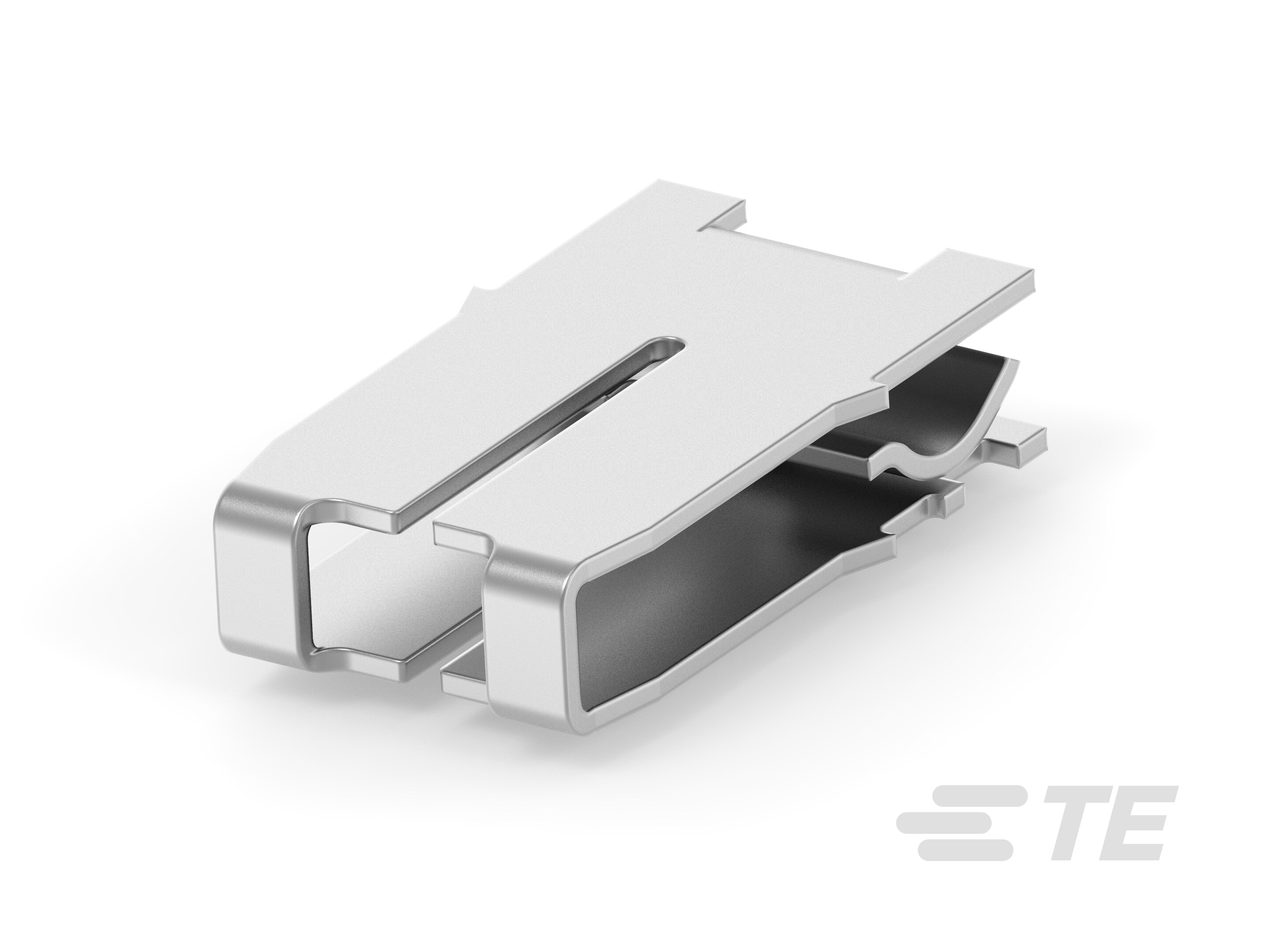

MAG-MATE TERMINAL 19-17 TPBR
1217068-1
ActiveTE Connectivity AMP Connectors
MAG-MATE TERMINAL 19-17 TPBR
Description
General part information
MAG-MATE 500 Series
Poke-In, .91 – 1.15 mm Magnet Wire, 19 – 17 AWG Magnet Wire, Insulation Displacement (IDC), Tin Plating, MAG-MATE 500, Magnet Wire Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217068-1 |
|---|---|
| Size | 4 |
| Style | 500 |
| Terminal Type | Poke-In Terminal |
| Termination | IDC |
| Wire Gauge (AWG) (Max) | 19 AWG |
| Wire Gauge (AWG) (Min) | 17 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
