PDW06398
ActiveKnowles Syfer

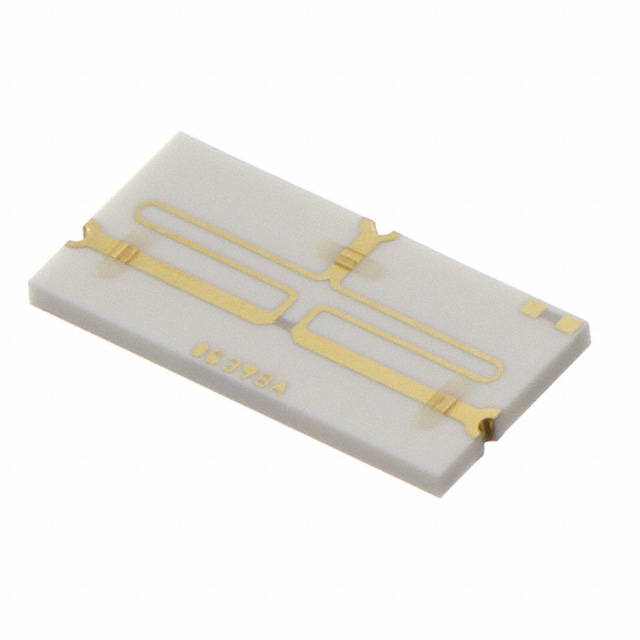

RF PWR DIVIDER 5GHZ-7GHZ MODULE
PDW06398
ActiveKnowles Syfer
RF PWR DIVIDER 5GHZ-7GHZ MODULE
Description
General part information
PDW06398
RF Power Divider 5 GHz ~ 7 GHz Isolation (Min) 14dB, 14dB Return Loss, 5° Imbalance (Max) Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PDW06398 |
|---|---|
| Frequency (Max) | 7 GHz |
| Frequency (Min) | 5 GHz |
| Imbalance (Max) | 5 ° |
| Insertion Loss | 0.25 dB |
| Isolation (Min) | 14 dB |
| Package / Case | Module |
| Return Loss | 14 dB |
| Size / Dimension Height | 0.015 in |
| Size / Dimension Length | 0.24 in |
| Size / Dimension Width | 0.12 in |
