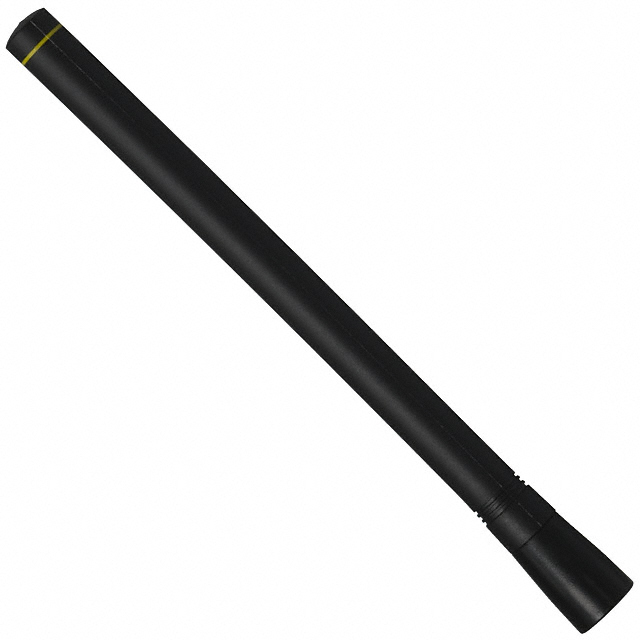

Specification	ANT-418-CW-HW-SMA

Antenna Type	Straight, Whip
Applications	Alarms, Remote Control, Security Systems, ISM
Frequency (Center/Band)	418 MHz
Frequency Group	UHF
Frequency Group Maximum (UHF)	1 GHz
Frequency Group Minimum (UHF)	300 MHz
Frequency Range (Max)	433 MHz
Frequency Range (Min)	403 MHz
Gain	0 dBi
Height (Max)	4.724 in
Mounting Type	Connector Mount
Number of Bands	1
RF Family/Standard	General ISM
Termination Type	SMA Male
VSWR	2

ANT-418 Series

Part	Mounting Type	Frequency Range (Max)	Frequency Range (Min)	Number of Bands	RF Family/Standard	Frequency Group Maximum (UHF)	Frequency Group	Frequency Group Minimum (UHF)	Height (Max)	Applications	Frequency (Center/Band)	VSWR	Termination Type	Antenna Type	Gain	Frequency (Center/Band)	Termination	Features	Frequency (Center)	Frequency (Band)
TE Connectivity AMP Connectors ANT-418-CW-QW-SMA	Connector Mount	450 MHz	380 MHz	1	General ISM	1 GHz	UHF	300 MHz	7.008 in	Alarms ISM Remote Control Security Systems	380MHz 410MHz 450MHz	1.9	SMA Male	Straight Whip	2.9 dBi
TE Connectivity AMP Connectors ANT-418-USP	Surface Mount	422 MHz	414 MHz	1	General ISM	1 GHz	UHF	300 MHz	0.103 in	Alarms ISM Remote Control Security Systems		1.9		Chip	-8.9 dBi	418 MHz	Solder
TE Connectivity AMP Connectors ANT-418-CW-RH	Connector Mount	423 MHz	413 MHz	1	General ISM	1 GHz	UHF	300 MHz	2.008 in	Alarms ISM Remote Control Security Systems		1.9	RP-SMA Male	Straight Whip	-6.7 dBi	418 MHz
TE Connectivity AMP Connectors ANT-418-CW-QW	Connector Mount	450 MHz	380 MHz	1	General ISM	1 GHz	UHF	300 MHz	7.008 in	Alarms ISM Remote Control Security Systems	380MHz 410MHz 450MHz	1.9	RP-SMA Male	Straight Whip	2.9 dBi
TE Connectivity AMP Connectors ANT-418-USP-T	Surface Mount	423 MHz	413 MHz	1	General ISM	1 GHz	UHF	300 MHz	0.103 in	Alarms ISM Remote Control Security Systems		2		Chip	-8.9 dBi	418 MHz	Solder
TE Connectivity AMP Connectors ANT-418-PW-QW-UFL	Panel Mount	450 MHz	380 MHz	1	General ISM	1 GHz	UHF	300 MHz	7.008 in	Alarms ISM Remote Control Security Systems		1.9	I-PEX MHF1 U.FL	Straight Whip	2.9 dBi	418 MHz	IPEX MHF1 U.FL (UMCC)	216mm Cable
TE Connectivity AMP Connectors ANT-418-MHW-RPS-S	Adhesive	428 MHz	408 MHz	1	General ISM	1 GHz	UHF	300 MHz	5.906 in	Alarms ISM Remote Control Security Systems		1.9	RP-SMA Male	Center-Fed Double Whip	2.1 dBi	418 MHz		2m Cable
TE Connectivity AMP Connectors ANT-418-PW-RA	Panel Mount	427 MHz	409 MHz	1	General ISM	1 GHz	UHF	300 MHz	5.18 in	Alarms ISM Remote Control Security Systems		2		Tilt Whip	2 dBi	418 MHz	Screw-Mount
TE Connectivity AMP Connectors ANT-418-WRT-RPS	Panel Mount	426 MHz	409 MHz	1	General ISM	1 GHz	UHF	300 MHz	1.063 in	Alarms ISM Remote Control Security Systems		1.9	RP-SMA Male	Dome	-1.3 dBi			216mm Cable	400 MHz	410 MHz
TE Connectivity AMP Connectors ANT-418-CW-RAH	Connector Mount	426 MHz	410 MHz	1	General ISM	1 GHz	UHF	300 MHz	1.85 in	Alarms ISM Remote Control Security Systems		1.9	RP-SMA Male	Right Angle Whip	-6.1 dBi	418 MHz
