109159003101916
ActiveKYOCERA AVX
CONN SSL PLUG 3POS 3MM SOLDER
109159003101916
ActiveKYOCERA AVX
CONN SSL PLUG 3POS 3MM SOLDER
Description
General part information
109159003101916

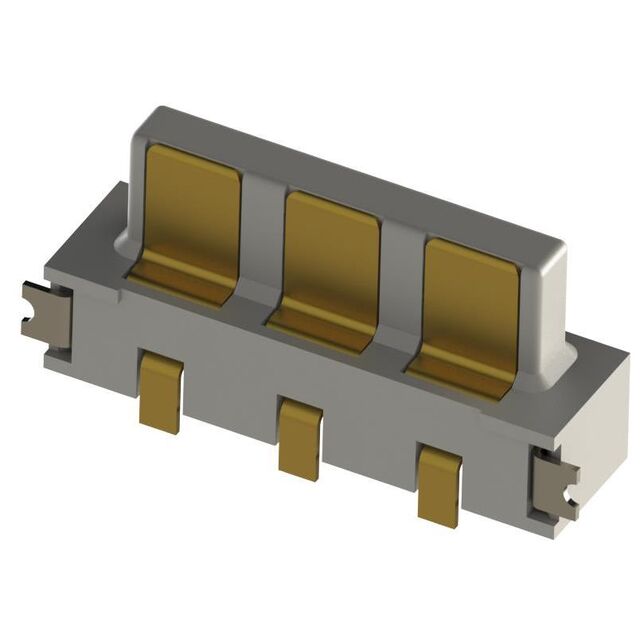

SSL Connector 3 Position Plug Board to Board 0.118" (3.00mm) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 109159003101916 |
|---|---|
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Per Contact) | 5 A |
| Features | Solder Retention |
| Housing Color | White |
| Housing Material | PA46, Polyamide, Nylon 4/6 |
| Mating Cycles | 10 cycles |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.118 in |
| Style | Board |
| Termination | Solder |
| Voltage Rating | 125 V |
