ICS18L50F08PCB2E1
ActiveCarlo Gavazzi Inc.

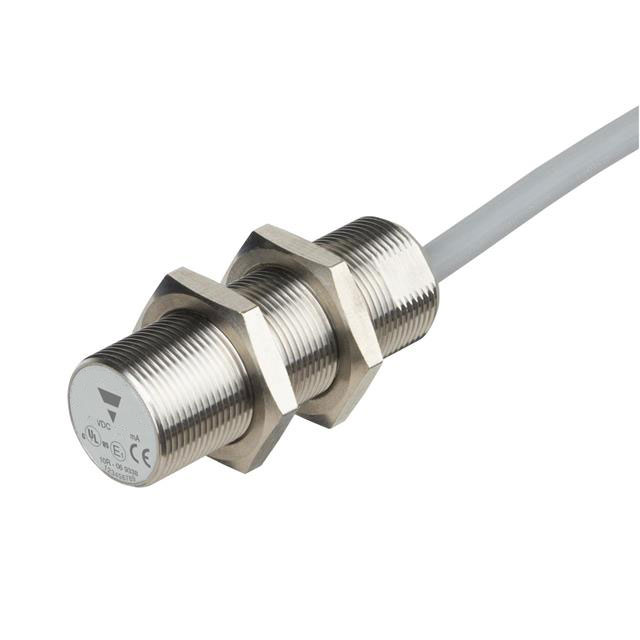

SENSOR, INDUCTIVE PROXIMITY, 8 MM, PNP / SPST-NC, M18 X 1, 8 TO 60 VDC, ICS18 E1 SERIES
ICS18L50F08PCB2E1
ActiveCarlo Gavazzi Inc.
SENSOR, INDUCTIVE PROXIMITY, 8 MM, PNP / SPST-NC, M18 X 1, 8 TO 60 VDC, ICS18 E1 SERIES
Description
General part information
ICS18L50F08PCB2E1
SENSOR, INDUCTIVE PROXIMITY, 8 MM, PNP / SPST-NC, M18 X 1, 8 TO 60 VDC, ICS18 E1 SERIES
Technical Specifications
Parameters and characteristics for this part
| Specification | ICS18L50F08PCB2E1 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP68, IP67, IP69K |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | PNP-NC, 4-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Sensing Distance | 0.315 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable |
| Voltage - Supply (Maximum) | 60 V |
| Voltage - Supply (Minimum) | 8 V |
