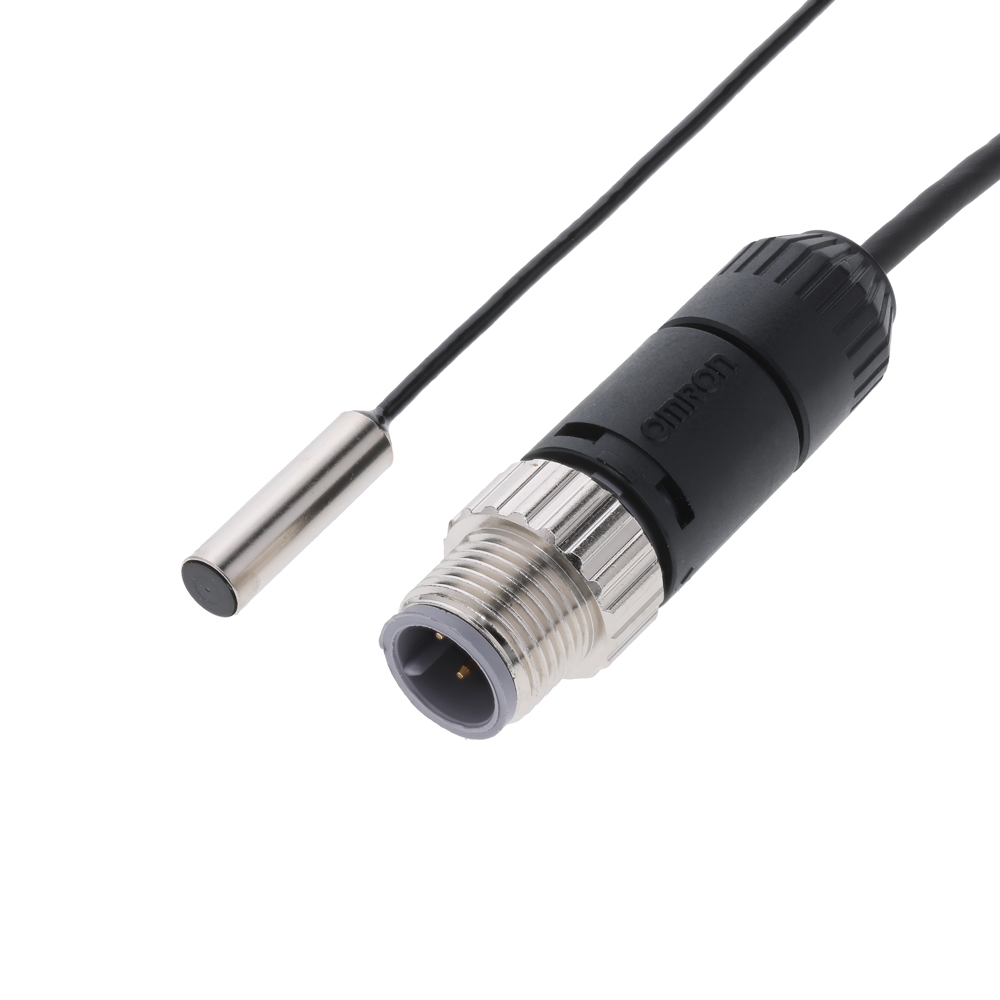

E2EC-C1R5D1-M1GJ 0.5M
ActiveOmron Automation and Safety
SENSOR PROX INDUCT 1.5MM CYLIND
E2EC-C1R5D1-M1GJ 0.5M
ActiveOmron Automation and Safety
SENSOR PROX INDUCT 1.5MM CYLIND
Description
General part information
E2EC-C1R5D1-M1GJ 0.5M
SENSOR PROX INDUCT 1.5MM CYLIND
Technical Specifications
Parameters and characteristics for this part
| Specification | E2EC-C1R5D1-M1GJ 0.5M |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | 2-Wire, NPN-NO |
| Package / Case | Cylinder |
| Response Frequency | 1.5 kHz |
| Sensing Distance | 0.059 " |
| Sensor Type | Inductive |
| Shielding | Shielded |
| Termination Style | Cable with Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
