19121054
ActiveCML Innovative Technologies LTD
INDICATOR PNL MNT 8MM NO RESISTO
19121054
ActiveCML Innovative Technologies LTD
INDICATOR PNL MNT 8MM NO RESISTO
Description
General part information
19121054

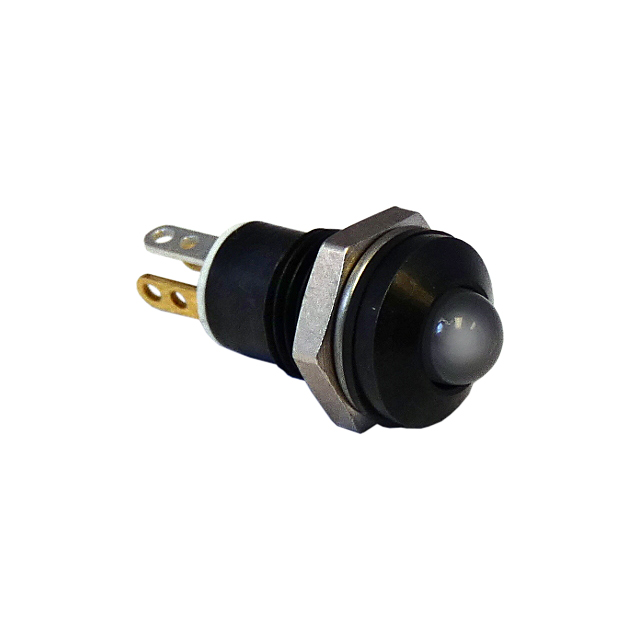

LED Panel Indicator 2.2V Green, 2.1V Red, 2.2V Yellow 30mA Quick Connect - 0.354" (9.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 19121054 |
|---|---|
| Current | 30 mA |
| Ingress Protection | IP67 |
| Lens Style | Round, Domed Top |
| Millicandela Rating (Green) | 20 mcd |
| Millicandela Rating (Red) | 10 mcd |
| Millicandela Rating (Yellow) | 30 mcd |
| Millicandela Rating Colors | Yellow, Green, Red |
| Panel Cutout Dimension | 0.315 " |
| Panel Cutout Shape | Round |
| Ratings | If (Max), Vf (Typ) |
| Termination Length | 0.354 in |
| Termination Style | Quick Connect |
| Type | LED |
| Voltage (Green) | 2.2 V |
| Voltage (Red) | 2.1 V |
| Voltage (Yellow) | 2.2 V |
| Voltage Color | Green, Yellow, Red |
