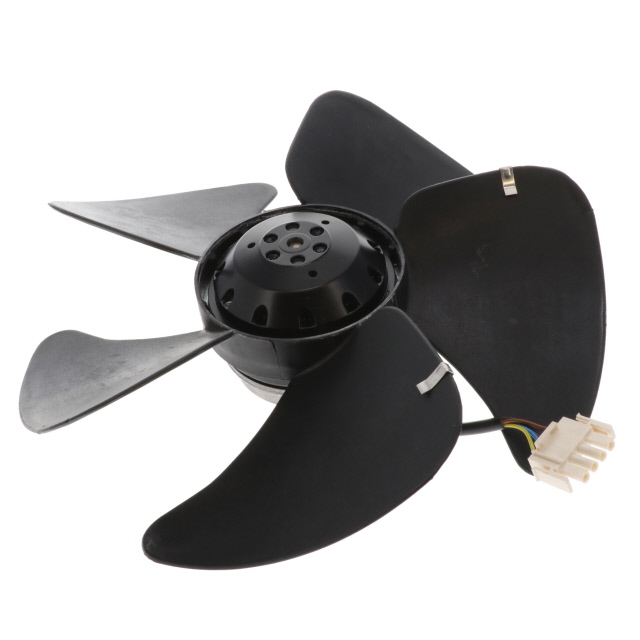

A4E300-AH26-52
Obsoleteebm-papst Inc.
AC FAN AXIAL BALL BEARING 230V 294 X 81MM
A4E300-AH26-52
Obsoleteebm-papst Inc.
AC FAN AXIAL BALL BEARING 230V 294 X 81MM
Description
General part information
A4E300-AH26-52
Fan Tubeaxial 230VAC Round - 294mm Dia Ball 4 Position Rectangular Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | A4E300-AH26-52 |
|---|---|
| Approval Agency | UL, CSA, CE, CCC |
| Bearing Type | Ball |
| Current Rating | 400 mA |
| Fan Type | Tubeaxial |
| Features | Capacitor, Thermal Overload Protector (TOP) |
| Ingress Protection | IP44 |
| Material - Blade | Nylon 6, PA6, Polyamide, Fiberglass Reinforced |
| Operating Temperature (Max) | 122 °F |
| Operating Temperature (Min) | -13 °F |
| Power (Watts) | 85 W |
| RPM | 1500 RPM |
| Size / Dimension Diameter | 294 mm |
| Size / Dimension Shape | Round |
| Static Pressure | 0.257 in H2O |
| Termination | 4 Position Rectangular Connector |
| Termination Leads Count | 4 leads |
| Termination Type | Position Rectangular Connector |
| Voltage - Rated | 230 VAC |
| Width | 75.4 mm |
