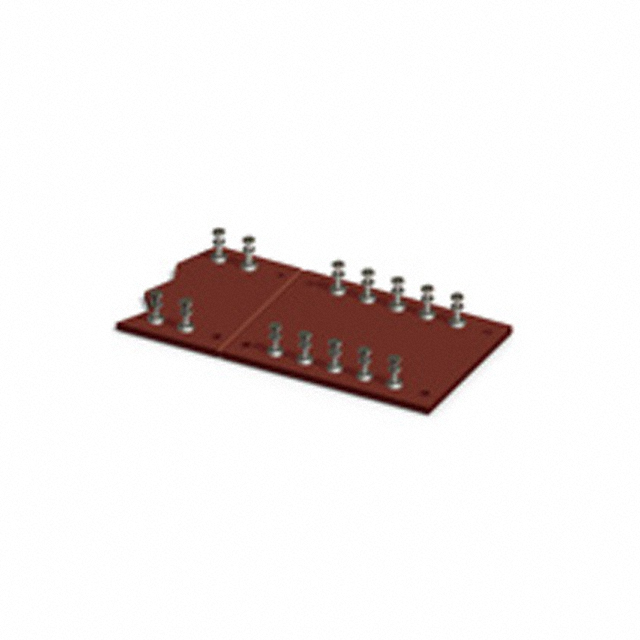

Specification	15542

Board Height	0.062 in
Board Length	3.687 in
Board Width	1.125 in
Contact Finish	Tin
Contact Material	Brass
Features	Miniature Strip
Material - Board	Glass Epoxy
Mounting Hole Diameter	0.144 in
Number of Positions	24 pos
Number of Rows	2
Row Spacing	0.812 in
Terminal Type	Single End, Double Turret, Turret
Type	Turret Board
