WJP1F5
ActiveIN-LINE ADAPTER, RJ45, RJ45, ADAPTER, IN-LINE, JACK, 8 POSITIONS
WJP1F5
ActiveIN-LINE ADAPTER, RJ45, RJ45, ADAPTER, IN-LINE, JACK, 8 POSITIONS
Description
General part information
WJP1F5

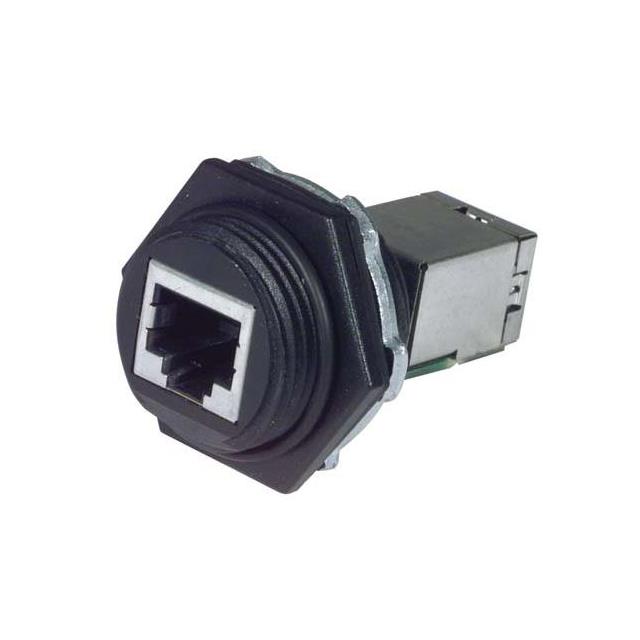

The WJP1F5 is a cat5E shielded Feed-thru Coupler, innovative design brings cat5E Ethernet connectivity to equipment regardless of the operating environment. A gasket seal provides optimum protection from moisture and other contaminants with an IP67 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference. Prevent cable failures by selecting the IP67 Ethernet solution for project.
Technical Specifications
Parameters and characteristics for this part
| Specification | WJP1F5 |
|---|---|
| Convert From (Adapter End) | 8p8c (RJ45), Jack |
| Convert To (Adapter End) | Jack, 8p8c (RJ45) |
| Housing Material | ABS, Acrylonitrile Butadiene Styrene |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Feature | Front Side Nut |
| Mounting Type | Bulkhead, Panel Mount |
| Ratings | Cat5e |
| Shielding | Shielded |
| Type | Coupler |
