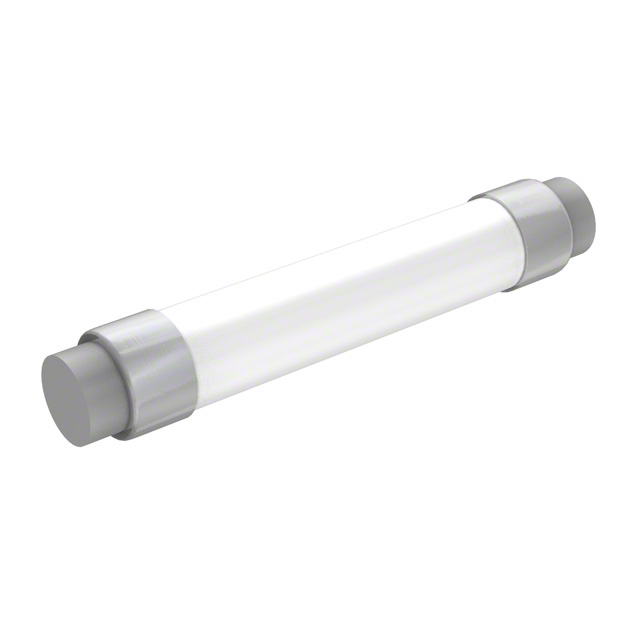

FWK-50A25F
ActiveEaton - Electronics Division
FUSE CARTRIDGE 50A 750VAC/VDC
FWK-50A25F
ActiveEaton - Electronics Division
FUSE CARTRIDGE 50A 750VAC/VDC
Description
General part information
FWK-50A25F
50A 750 VAC 750 VDC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | FWK-50A25F |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CE |
| Breaking Capacity | 45 kA |
| Current Rating | 50 A |
| Fuse Type | Cartridge |
| Melting I²t | 3100 |
| Mounting Type | Requires Holder |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension Diameter | 1 in |
| Size / Dimension Length | 5.75 in |
| Voltage Rating - AC | 750 VAC |
| Voltage Rating - DC | 750 V |
