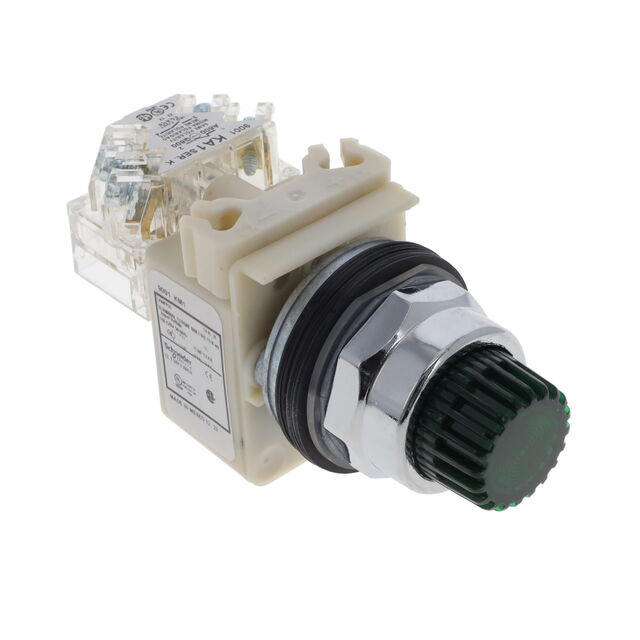

9001K2L1GH13
ActiveSCHNEIDER ELECTRIC
PUSH BUTTON 600VAC 10A 30MM T-K ROHS COMPLIANT: YES
9001K2L1GH13
ActiveSCHNEIDER ELECTRIC
PUSH BUTTON 600VAC 10A 30MM T-K ROHS COMPLIANT: YES
Description
General part information
9001K2L1GH13
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001K2L1GH13 |
|---|---|
| Actuator Type | Button, Round |
| Circuit | SPDT |
| Color | Green |
| Color - Actuator/Cap | Green |
| Current Rating | 10 A |
| Illumination Type | Incandescent |
| Illumination Voltage (Nominal) (Maximum) | 120 VAC/DC |
| Illumination Voltage (Nominal) (Minimum) | 110 VAC |
| Mounting Type | Front, Panel Mount |
| Panel Cutout Diameter | 30 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Screw Terminal |
| Type | Standard, Illuminated |
