Description

General part information

1-5530841-1

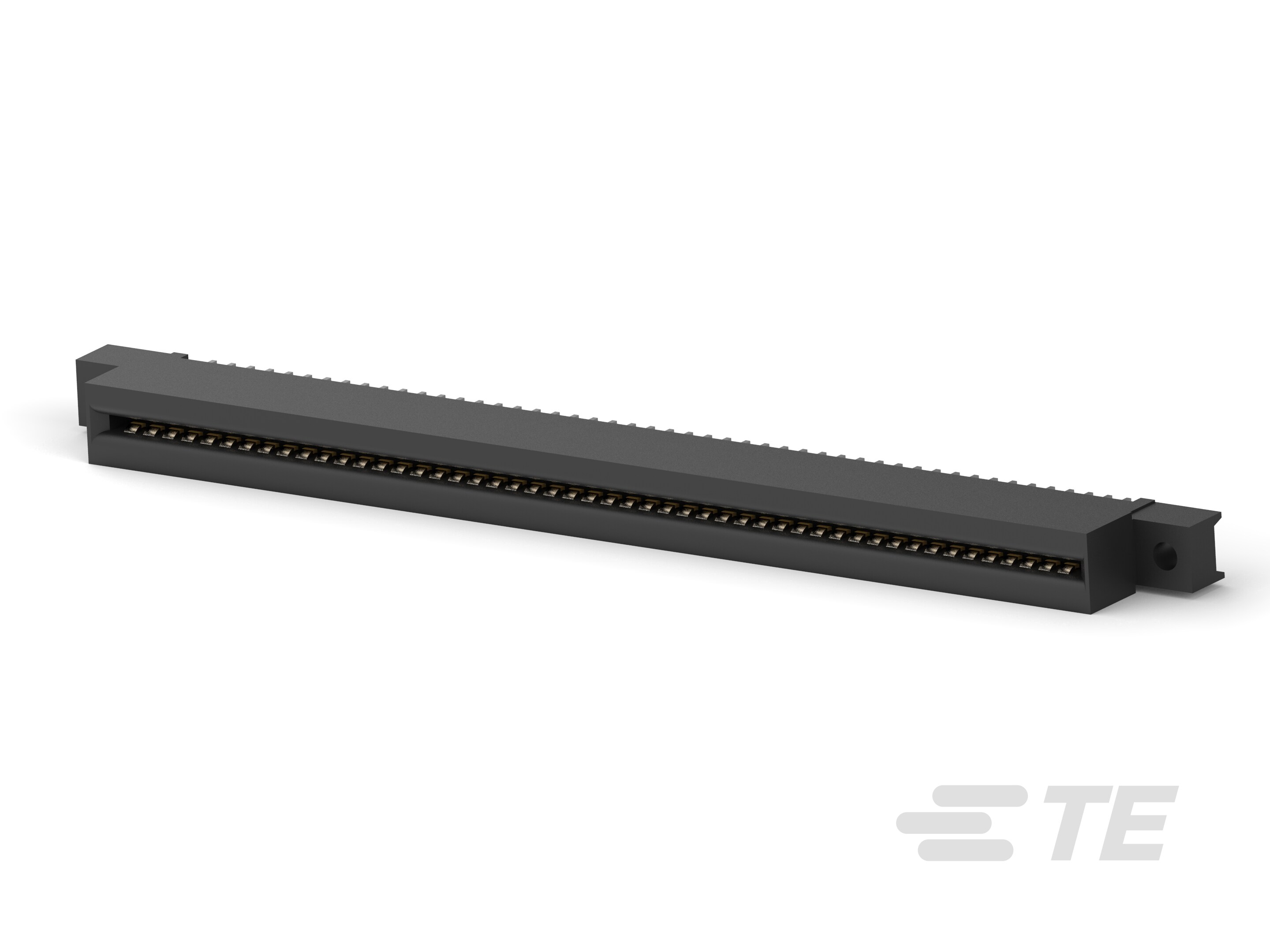

Board-to-Board Card Edge Power Connector, 50 Position, 2.54 mm [.1 in] Centerline, Power & Signal, 100 Power Positions, 0 Signal Positions

Technical Specifications

Parameters and characteristics for this part

Specification1-5530841-1
Card Thickness (Max)0.07 in
Card Thickness (Min)0.054 in
Card TypeNon Specified, Dual Edge
ColorBlack
Contact FinishGold
Contact Finish Thickness30 µin
Contact MaterialPhosphor Bronze
Flange FeatureFlush Mount, Unthreaded, Top Opening
Flange Feature Diameter0.128 in
GenderFemale
Mounting TypeThrough Hole
Number of Positions100
Number of Rows2
Operating Temperature (Max)85 °C
Operating Temperature (Min)-55 °C
Pitch0.1 in
Read OutDual
TerminationSolder
