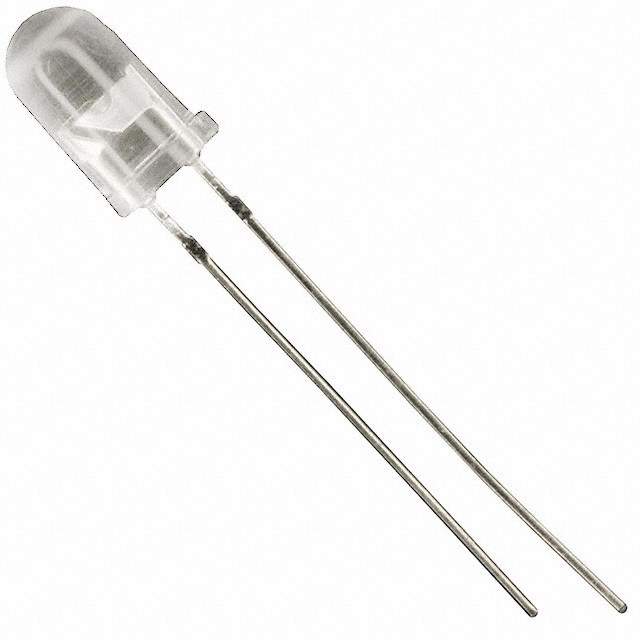

Specification	C503B-BAN-CX0B0461

Color	Blue
Configuration	Standard
Current - Test	20 mA
Height (Max)	10.3 mm
Lens Color	Colorless
Lens Diameter	5 mm
Lens Style	Round, Domed Top
Lens Transparency	Clear
Millicandela Rating	13840 mcd
Mounting Type	Through Hole
Package / Case	Radial
Package Name	5mm Round
Supplier Device Package Shape	Round
Supplier Device Package Size	5 mm
Viewing Angle	15 °
Voltage - Forward (Vf) (Typ)	3.2 V
Wavelength - Dominant	470 nm

C503B Series

...

Part	Supplier Device Package Size	Supplier Device Package Shape	Package Name	Package / Case	Lens Color	Millicandela Rating	Lens Diameter	Lens Transparency	Current - Test	Color	Height (Max)	Configuration	Lens Style	Viewing Angle	Mounting Type	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant (Color Temperature)	Lens Size	Lens Size (Code)	Supplier Device Package
CreeLED, Inc. C503B-RCS-CXAYCAA1-030	5 mm	Round	5mm Round	Radial	Colorless	6190 mcd	5 mm	Clear	20 mA	Red	12.9 mm	Standard	Domed Top Round	30 °	Through Hole	624 nm	2.1 V
CreeLED, Inc. C503B-GAS-CC0D0781	5 mm	Round	5mm Round	Radial	Colorless	34800 mcd	5 mm	Clear	20 mA	Green	13.3 mm	Standard	Domed Top Round	15 °	Through Hole	525 nm	3.2 V
CreeLED, Inc. C503B-ACS-CX0Z0342	5 mm	Round	5mm Round	Radial	Colorless	8090 mcd	5 mm	Clear	20 mA	Amber	12.7 mm	Standard	Domed Top Round	30 °	Through Hole	591 nm	2.1 V
CreeLED, Inc. C503B-BCN-CX0Y0451	5 mm	Round	5mm Round	Radial	Colorless	6190 mcd	5 mm	Clear	20 mA	Blue	8.6 mm	Standard	Domed Top Round	30 °	Through Hole	470 nm	3.2 V
CreeLED, Inc. C503B-WAN-CCADA152	5 mm	Round	5mm Round	Radial	Colorless	31500 mcd	5 mm	Clear	20 mA	Cool White	8.8 mm	Standard	Domed Top Round	15 °	Through Hole		3.2 V	9000 K
CreeLED, Inc. C503B-RCS-CYBZAAA1-030	5 mm	Round	5mm Round	Radial	Colorless	8300 mcd	5 mm	Clear	20 mA	Red	12.9 mm	Standard	Domed Top Round	30 °	Through Hole	624 nm	2.1 V
CreeLED, Inc. C503B-BCS-CX0Y0451	5 mm	Round	5mm Round	Radial	Colorless	6190 mcd	5 mm	Clear	20 mA	Blue	12.7 mm	Standard	Domed Top Round	30 °	Through Hole	470 nm	3.2 V
CreeLED, Inc. C503B-AAN-CY0Z0341	5 mm	Round	5mm Round	Radial	Colorless	8930 mcd	5 mm	Clear	20 mA	Amber	11.3 mm	Standard	Domed Top Round	15 °	Through Hole	591 nm	2.1 V
CreeLED, Inc. C503B-WAN-CCADB342				Radial	Colorless	34800 mcd		Clear	20 mA	Cool White	10.3 mm	Standard	Domed Top Round	15 °	Through Hole		3.2 V	9000 K	5 mm	T-1 3/4	5 mm
CreeLED, Inc. C503B-ABS-CW0X0341	5 mm	Round	5mm Round	Radial	Colorless	4430 mcd	5 mm	Clear	20 mA	Amber	13.3 mm	Standard	Domed Top Round	23 °	Through Hole	591 nm	2.1 V
