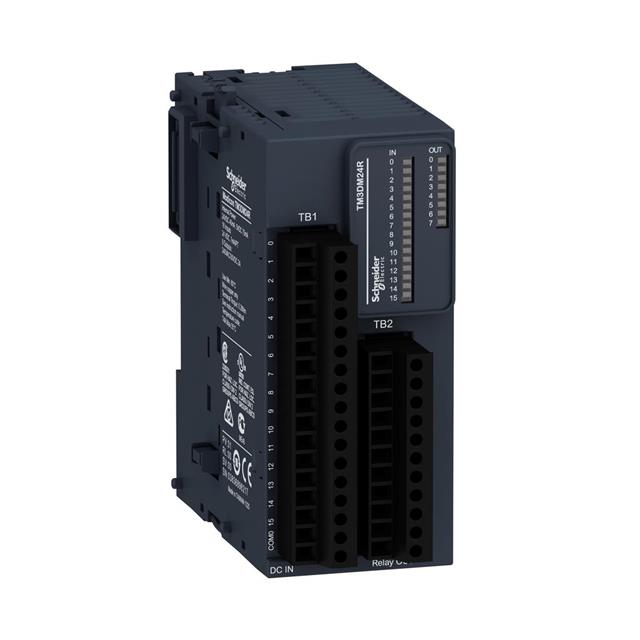

TM3DM24R
ActiveSCHNEIDER ELECTRIC
EXPANSION MODULE, MODICON TM3, 24 RELAY I/O
TM3DM24R
ActiveSCHNEIDER ELECTRIC
EXPANSION MODULE, MODICON TM3, 24 RELAY I/O
Description
General part information
TM3DM24R
Input, Output (I/O) Module DIN Rail 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | TM3DM24R |
|---|---|
| Approval Agency | cULus, C-Tick |
| For Use With/Related Products | Modicon TM3 Series |
| Ingress Protection | IP20 |
| Input Types | Digital |
| Mounting Type | DIN Rail |
| Number of Inputs | 16 |
| Number of Outputs | 8 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Output Type | Relay |
| Termination Style | Screw Terminal |
| Type | Output (I/O) Module, Input |
| Voltage - Supply | 24 VDC |
