9001KP7LRR9
ActiveSCHNEIDER ELECTRIC

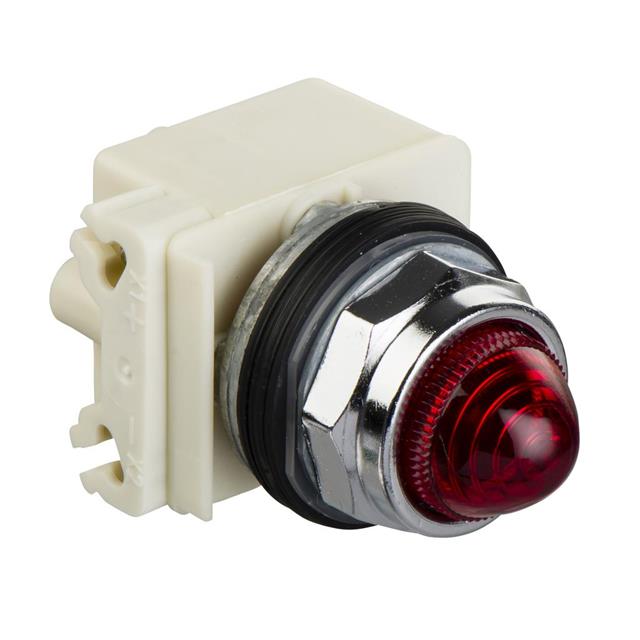

30MM PILOT LIGHT, 220-240V, RED
9001KP7LRR9
ActiveSCHNEIDER ELECTRIC
30MM PILOT LIGHT, 220-240V, RED
Description
General part information
9001KP7LRR9
LED Panel Indicator Red Fresnel 220V ~ 240V Screw Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001KP7LRR9 |
|---|---|
| Ingress Protection | 2, 6, IP66, 1, 13, 4, 3, NEMA 3R, 12 |
| Lamp Color | Red |
| Lens Color | Red |
| Lens Style | Round, Domed Top |
| Lens Transparency | Fresnel |
| Panel Cutout Dimension | 1.18 " |
| Panel Cutout Shape | Round |
| Ratings | AC |
| Termination Style | Screw Terminal |
| Type | LED |
| Voltage (Max) | 240 V |
| Voltage (Min) | 220 VAC |
