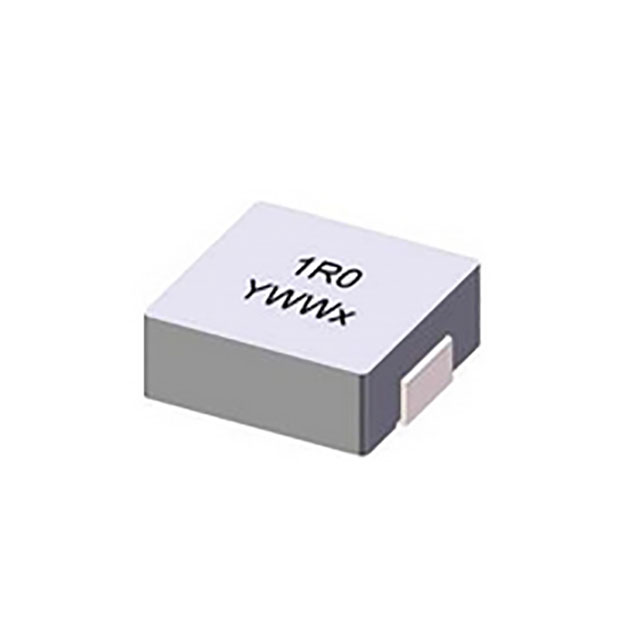

SM5018-R47MHF
ActiveITG Electronics, Inc.
FIXED IND 470NH 38A 1.3MOHM SMD
SM5018-R47MHF
ActiveITG Electronics, Inc.
FIXED IND 470NH 38A 1.3MOHM SMD
Description
General part information
SM5018-R47MHF
470 nH Shielded Inductor 38 A 1.3mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SM5018-R47MHF |
|---|---|
| Current - Saturation (Isat) | 65 A |
| Current Rating | 38 A |
| DC Resistance (DCR) (Max) | 1.3 mOhm |
| Height - Seated (Max) | 0.197 in |
| Inductance | 470 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.52 in |
| Size / Dimension Width | 0.508 in |
| Tolerance | 20 % |
