1318774-1

Active

TE Connectivity AMP Connectors

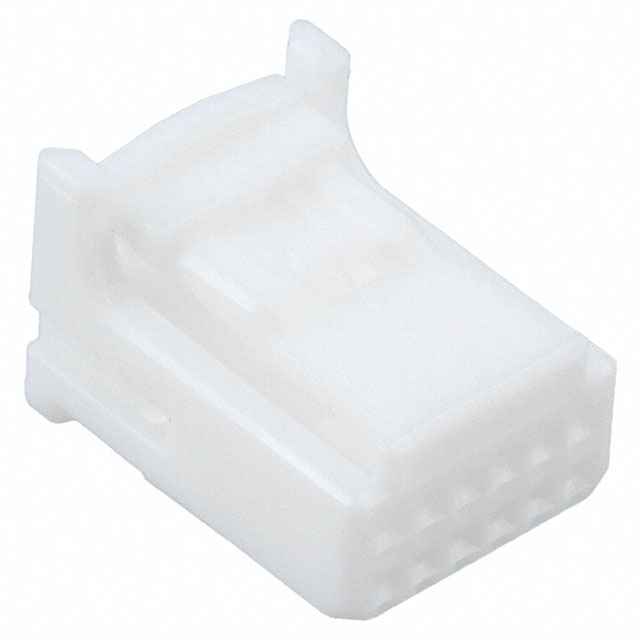

CONN PLUG HSG 12POS 2.20MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 12POS 2.20MM

Technical Specifications

Parameters and characteristics for this part

Specification	1318774-1

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.087 in
Pitch [x]	2.2 mm
Row Spacing [x]	0.118 in
Row Spacing [x]	3 mm

CONN PLUG HSG 12POS 2.20MM

Part	Number of Positions	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Color	Contact Termination	Number of Rows	Pitch [x]	Pitch [x]	Note	Connector Type	Mounting Type	Row Spacing [x]	Row Spacing [x]	Contact Type
TE Connectivity AMP Connectors 1318774-1	12	Locking Ramp	-30 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Natural	Crimp	2	0.087 in	2.2 mm	Contacts Not Included	Plug	Free Hanging (In-Line)	0.118 in	3 mm	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Plug Natural 0.087" (2.20mm)
