TX25/15/13-3E6
ActiveFerroxcube
FERRITE CORE TOROID

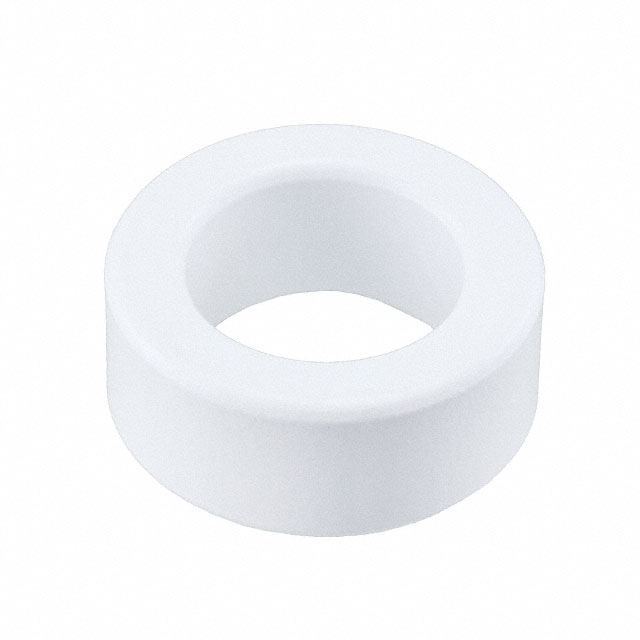

TX25/15/13-3E6
ActiveFerroxcube
FERRITE CORE TOROID
Description
General part information
TX25/15/13-3E6
Epoxy Ferrite Core Toroid Type Length Width 1.007" (25.95mm) Diameter 0.539" (13.70mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | TX25/15/13-3E6 |
|---|---|
| Core Factor (ΣI/A) | 0.97 mm⁻² |
| Core Factor (ΣI/A) mm⁻¹ | 0.97 mm⁻¹ |
| Core Type | Toroid |
| Diameter | 1.007 in |
| Effective Area (Ae) | 62.1 mm² |
| Effective Length (le) | 60.1 mm |
| Effective Magnetic Volume (Ve) | 3740 mm³ |
| Effective Permeability (µe) | 10000 |
| Finish | Epoxy |
| Gap | Ungapped |
| Height | 0.539 in |
| Package Height | 13 mm |
| Package Length | 25 mm |
| Package Name | TX |
| Package Width | 15 mm |
| Tolerance | 30 % |
