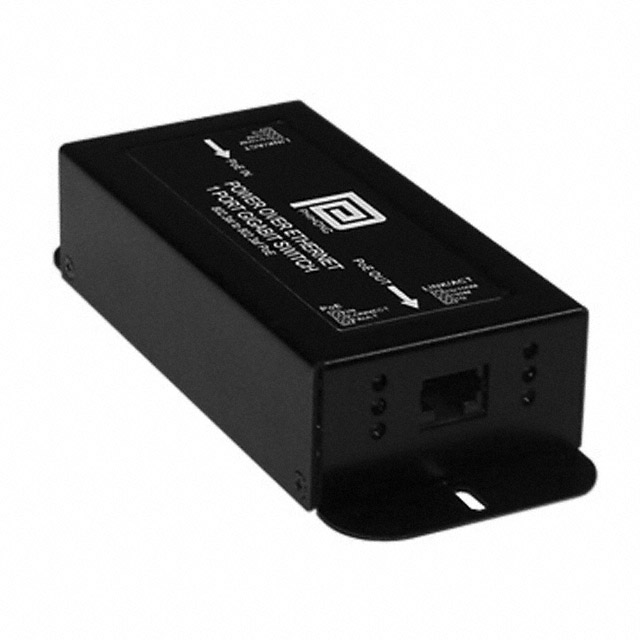

POE16S-1AFG
ObsoletePhihong USA
POE EXTENDER 19W 56V DESKTOP
POE16S-1AFG
ObsoletePhihong USA
POE EXTENDER 19W 56V DESKTOP
Description
General part information
POE16S-1AFG
56V Power Over Ethernet (POE) 1 Port Extender 10/100/1000 Mbps Data Rate
Technical Specifications
Parameters and characteristics for this part
| Specification | POE16S-1AFG |
|---|---|
| Approval Agency | CE |
| Compliance | IEEE802.3af |
| Current - Output | 330 mA |
| Efficiency | 75 % |
| Features | SCP |
| Input Connector | RJ45 (Data, Power) |
| Maximum Data Rate | 1000 Mbps |
| Minimum Data Rate | 10 Mbps |
| Mounting Type | Desktop |
| Number of Ports | 1 |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Power), RJ45 (Data |
| Power (Watts) - Per Port | 19 W |
| Size / Dimension Height | 1.26 in |
| Size / Dimension Length | 4.72 in |
| Size / Dimension Width | 2.36 in |
| Type | Extender |
| Typical Data Rate | 100 Mbps |
| Voltage - Input (Maximum) | 57 V |
| Voltage - Input (Minimum) | 45 V |
| Voltage - Output | 56 V |
| Weight | 1.3 lbs |
