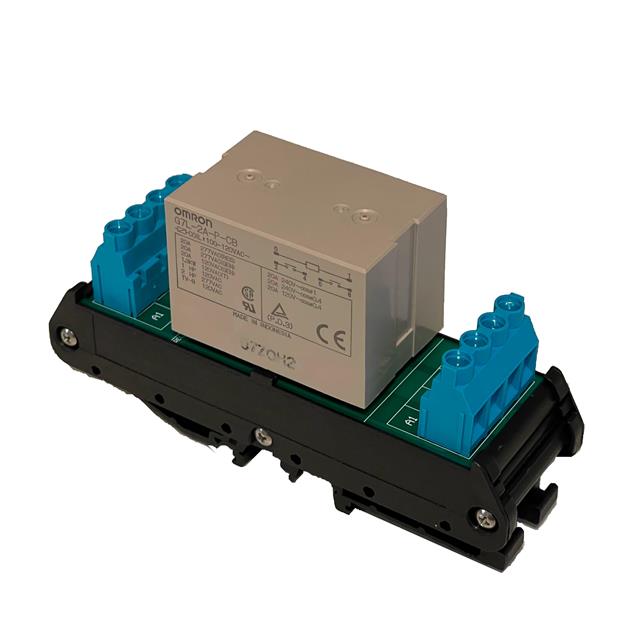

RB-G7L-2A-V110

Active

MAKESafe Tools

G7L 2A RELAY DIN BRKOUT 20A 2HP

Search across all available documentation for this part.

Active

MAKESafe Tools

G7L 2A RELAY DIN BRKOUT 20A 2HP

Technical Specifications

Parameters and characteristics for this part

G7L 2A RELAY DIN BRKOUT 20A 2HP

Part	Coil Insulation	Switching Voltage	Must Release Voltage	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Must Operate Voltage	Mounting Type	Coil Type	Operate Time	Contact Rating (Current)	Relay Type	Contact Form	Release Time	Coil Voltage
MAKESafe Tools RB-G7L-2A-V110	Class B	250 VAC	18 VAC	Silver Tin Indium (AgSnIn)	-25 °C	60 °C	Screw Terminal	75 VAC	DIN Rail	Non Latching	30 ms	20 A	General Purpose	DPST-NO (2 Form A)	30 ms	120 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 28.99

General part information

General Purpose Relay DPST-NO (2 Form A) 120VAC Coil DIN Rail

Technical documentation and resources

No documents available
