917690-1
ActiveTE Connectivity AMP Connectors

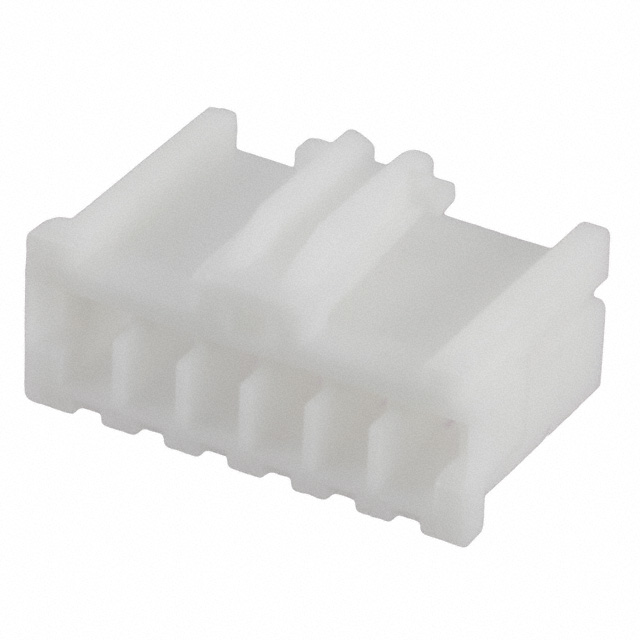

CONN PLUG HSG 6POS 2.50MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
917690-1
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 6POS 2.50MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 917690-1 | 917690 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 6 | 6 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Pitch [x] | 0.098 in | 0.098 in |
| Pitch [x] | 2.5 mm | 2.5 mm |
917690 Series
2.5 S.D.L PLUG HSG 6P BLUE
| Part | Note | Connector Type | Number of Positions | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Number of Rows | Mounting Type | Fastening Type | Contact Type | Color | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 917690-6 | Contacts Not Included | |||||||||||||
TE Connectivity AMP Connectors 917690-1 | Contacts Not Included | Plug | 6 | 0.098 in | 2.5 mm | -30 ░C | 105 ░C | Crimp | 1 | Free Hanging (In-Line) | Locking Ramp | Female Socket | Natural | Polyamide (PA66), Nylon 6/6 |
TE Connectivity AMP Connectors 5-917690-1 | Contacts Not Included | Plug | 6 | 0.098 in | 2.5 mm | -30 ░C | 105 ░C | Crimp | 1 | Free Hanging (In-Line) | Locking Ramp | Female Socket | Natural | Polyamide (PA66), Nylon 6/6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.37 | |
| 10 | $ 0.34 | |||
| 300 | $ 0.25 | |||
| 1200 | $ 0.21 | |||
| 5100 | $ 0.19 | |||
| 10200 | $ 0.17 | |||
Description
General part information
917690 Series
6 Rectangular Connectors - Housings Plug Natural 0.098" (2.50mm)
