930224100
ActiveAltech Corporation

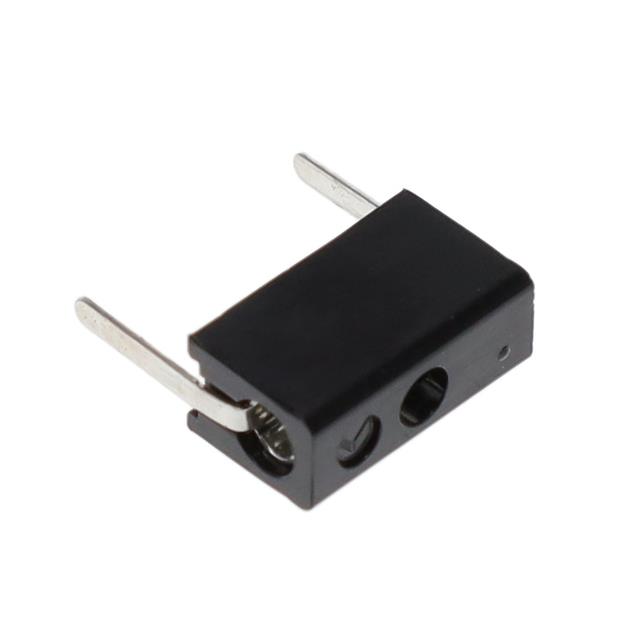

PCB TEST SOCKET MPB 1 BLK 2MM TE
930224100
ActiveAltech Corporation
PCB TEST SOCKET MPB 1 BLK 2MM TE
Description
General part information
930224100
Tip Jack Connector Standard Tip Solder Black
Technical Specifications
Parameters and characteristics for this part
| Specification | 930224100 |
|---|---|
| Body Material | PC, Polycarbonate |
| Color | Black |
| Contact Finish | Tin |
| Gender | Female |
| Insulation | Mating End Insulated |
| Mounting Type | Horizontal, Through Hole |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Plug/Mating Plug Diameter | Standard Tip |
| Termination | Solder |
| Type | Tip Jack |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
