Description
General part information

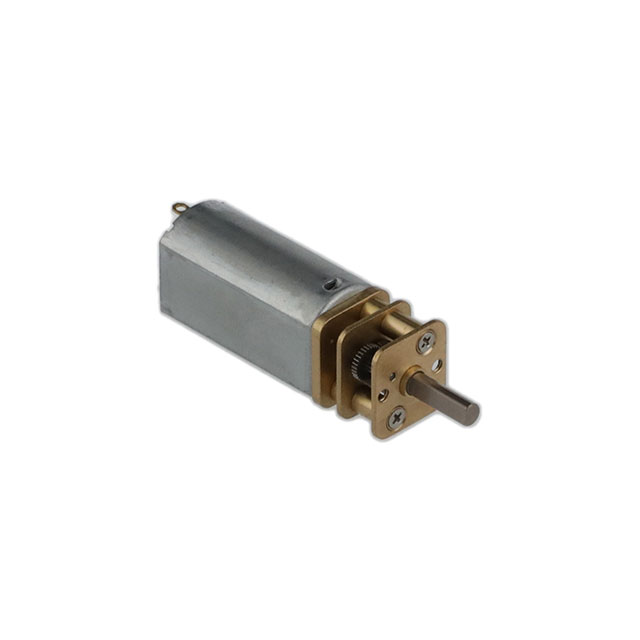

FIT0564
DC Motor Gearmotor 400 RPM 6VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | FIT0564 |
|---|---|
| Diameter - Shaft | 0.118 in |
| Function | Gearmotor |
| Gear Reduction Ratio | 35 |
| Length - Shaft and Bearing | 0.394 in |
| Mounting Hole Spacing | 0.354 in |
| RPM | 400 RPM |
| Size / Dimension Length | 0.512 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.472 in |
| Termination Style | Solder Tab |
| Torque - Rated (mNm) | 39.23 mNm |
| Torque - Rated (oz-in) | 5.56 oz-in |
| Type | DC Motor |
| Voltage - Rated | 6 VDC |
