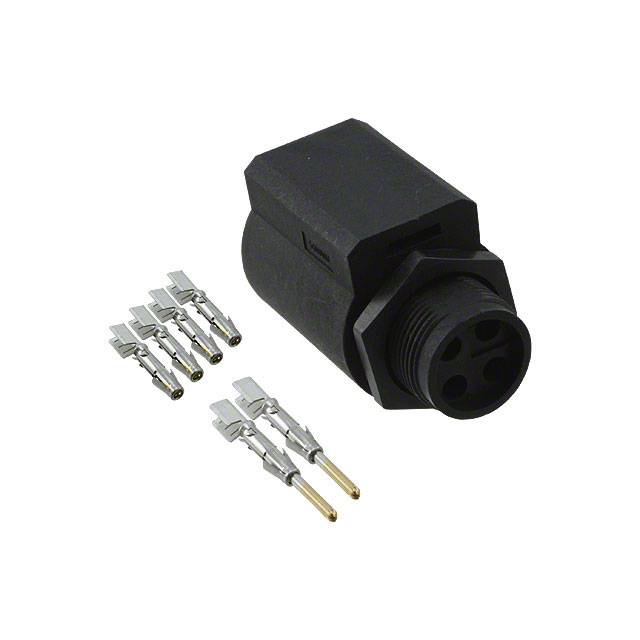

Specification	UTL7103G1S14AWG

Applications	Industrial
Color	Black
Connector Type	Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Fastening Type	Latch Lock
Features	UV Resistant
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP69K, IP68, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 5VA
Material Flammability Rating - Code	UL94
Material Flammability Rating - Level	5
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Positions	4
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Position Types	PE
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert Length	10 mm
Shell Size - Insert Width	3 mm
Shielding	Unshielded
Termination	Crimp

UTL71 Series

Part	Housing Color	Ingress Protection IP Rating	Ingress Protection Description	Note	Type	Position Types	Number of Positions	Mounting Type	Orientation	Contact Type	Shell Size - Insert Length	Shell Size - Insert Width	Mounting Feature	Contact Shape	Operating Temperature (Min)	Operating Temperature (Max)	Insert Material	Material Flammability Rating - Level	Material Flammability Rating	Material Flammability Rating - Code	Contact Size	Fastening Type	Shell Material	Shielding	Connector Type	Termination	Applications	Contact Finish - Mating	Contact Finish Thickness - Mating	Color	Contact Material	Primary Material	Features
Amphenol Aerospace Operations UTL7122G1W5P	Black	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	For Female Sockets and Male Pins	PE Power	8	Panel Mount	Keyed	Crimp	12 mm	2 mm	Bulkhead Rear Side Nut	Circular	-40 °C	105 °C	Thermoplastic	5	UL94 5VA	UL94	16 20	Latch Lock	Glass Reinforced Nylon Polyamide (PA)	Unshielded	Receptacle Housing
Amphenol Aerospace Operations UTL7103G1S20AWG		IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof			PE	4	Panel Mount			10 mm	3 mm	Bulkhead Rear Side Nut		-40 °C	105 °C	Thermoplastic	5	UL94 5VA	UL94		Latch Lock	Glass Filled Nylon Polyamide (PA)	Unshielded	Female Sockets Male Pins Receptacle	Crimp	Industrial	Gold	Flash	Black	Copper Alloy	Plastic	UV Resistant
Amphenol Aerospace Operations UTL7102G1W3P	Black	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	For Female Sockets and Male Pins	PE Power	6	Panel Mount	Keyed	Crimp	10 mm	2 mm	Bulkhead Rear Side Nut	Circular	-40 °C	105 °C	Thermoplastic	5	UL94 5VA	UL94	16 20	Latch Lock	Glass Reinforced Nylon Polyamide (PA)	Unshielded	Receptacle Housing
Amphenol Aerospace Operations UTL7102G1W3P16AWG		IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof			PE Power	6	Panel Mount			10 mm	2 mm	Bulkhead Rear Side Nut		-40 °C	105 °C	Nylon PA Polyamide	5	UL94 5VA	UL94		Latch Lock	Glass Filled Nylon Polyamide (PA)	Unshielded	Female Sockets Male Pins Receptacle	Crimp	Industrial	Gold	Flash	Black	Copper Alloy	Plastic	UV Resistant
Amphenol Aerospace Operations UTL7102G1W3P03	Gray	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	For Female Sockets and Male Pins	PE Power	6	Panel Mount	Keyed	Crimp	10 mm	2 mm	Bulkhead Rear Side Nut	Circular	-40 °C	105 °C	Thermoplastic	5	UL94 5VA	UL94	16 20	Latch Lock	Glass Reinforced Nylon Polyamide (PA)	Unshielded	Receptacle Housing
Amphenol Aerospace Operations UTL7102G1W3S	Black	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	For Female Sockets and Male Pins	PE Power	6	Free Hanging (In-Line) Panel Mount	Keyed N (Normal)	Crimp	10 mm	2 mm	Bulkhead Rear Side Nut	Circular	-40 °C	105 °C	Thermoplastic	5	UL94 5VA UL94 V-0	UL94	16 20	Latch Lock	Glass Reinforced Nylon Polyamide (PA)	Unshielded	Receptacle Housing							Plastic
Amphenol Aerospace Operations UTL7103G1P16AWG		IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof			PE	4	Panel Mount			10 mm	3 mm	Bulkhead Rear Side Nut		-40 °C	105 °C	Thermoplastic	5	UL94 5VA	UL94		Latch Lock	Glass Filled Nylon Polyamide (PA)	Unshielded	Female Sockets Male Pins Receptacle	Crimp	Industrial	Gold	Flash	Black	Copper Alloy	Plastic	UV Resistant
Amphenol Aerospace Operations UTL7103G1S16AWG		IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof			PE	4	Panel Mount			10 mm	3 mm	Bulkhead Rear Side Nut		-40 °C	105 °C	Thermoplastic	5	UL94 5VA	UL94		Latch Lock	Glass Filled Nylon Polyamide (PA)	Unshielded	Female Sockets Male Pins Receptacle	Crimp	Industrial	Gold	Flash	Black	Copper Alloy	Plastic	UV Resistant
Amphenol Aerospace Operations UTL7122G1W5S	Black	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Contacts Not Included	For Female Sockets and Male Pins	PE Power	8	Panel Mount	Keyed	Crimp	12 mm	2 mm	Bulkhead Rear Side Nut	Circular	-40 °C	105 °C	Thermoplastic	5	UL94 5VA	UL94	16 20	Latch Lock	Glass Reinforced Nylon Polyamide (PA)	Unshielded	Receptacle Housing
Amphenol Aerospace Operations UTL7103G1P20AWG		IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof			PE	4	Panel Mount			10 mm	3 mm	Bulkhead Rear Side Nut		-40 °C	105 °C	Thermoplastic	5	UL94 5VA	UL94		Latch Lock	Glass Filled Nylon Polyamide (PA)	Unshielded	Female Sockets Male Pins Receptacle	Crimp	Industrial	Gold	Flash	Black	Copper Alloy	Plastic	UV Resistant
