DB0402012L2B-2T0
ActiveWakefield Thermal Solutions

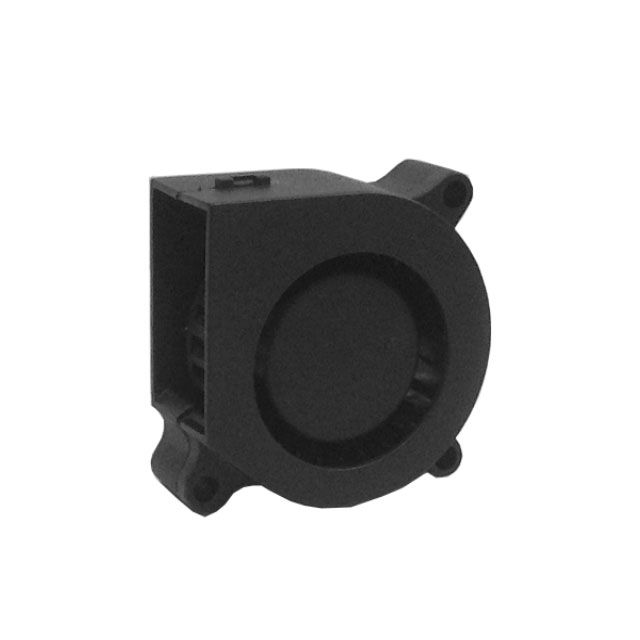

FAN BLOWER 40.5X19.5MM 12VDC
DB0402012L2B-2T0
ActiveWakefield Thermal Solutions
FAN BLOWER 40.5X19.5MM 12VDC
Description
General part information
DB0402012L2B-2T0
Fan Blower 12VDC Square/Rounded - 40.5mm L x 40.5mm H Ball 1.6 CFM (0.045m³/min) 2 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | DB0402012L2B-2T0 |
|---|---|
| Air Flow | 1.6 CFM |
| Approval Agency | CE |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | Locked Rotor Protection |
| Ingress Protection Description | Water Resistant, Dust Protected |
| Ingress Protection IP Rating | IP55 |
| Lifetime | 70000 Hrs |
| Material - Blade | PBT, Polybutylene Terephthalate |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Noise | 27 dB |
| Operating Temperature (Max) | 158 °F |
| Operating Temperature (Min) | 14 °F |
| Power (Watts) | 960 mW |
| RPM | 3500 RPM |
| Size / Dimension Height | 40.5 mm |
| Size / Dimension Length | 40.5 mm |
| Size / Dimension Shape | Square/Rounded |
| Static Pressure | 0.13 in H2O |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 12 VAC |
| Width | 19.5 mm |
