2430786-1
ActiveTE Connectivity AMP Connectors

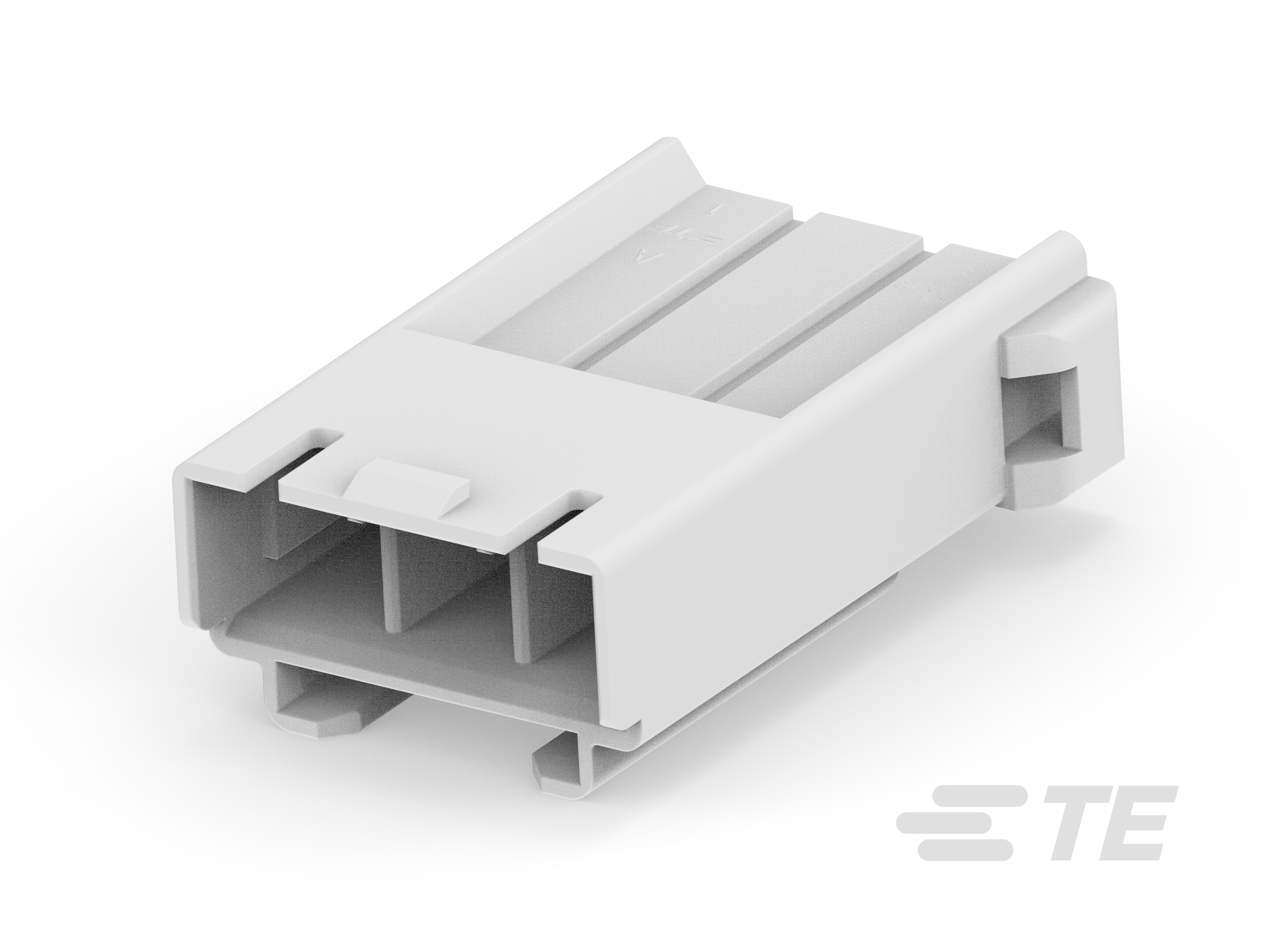

5.0 POWER KEY WTW CAP HSG, 3P NATURAL
2430786-1
ActiveTE Connectivity AMP Connectors
5.0 POWER KEY WTW CAP HSG, 3P NATURAL
Description
General part information
2430786-1
3 Position, Cap, Housing, Crimp, Wire-to-Wire, Tin (Sn), Normal, UL 94V-0, 5 mm [.197 in] Centerline, 1 Row, 300 VAC, Wire & Cable, Power Key 5.0
Technical Specifications
Parameters and characteristics for this part
| Specification | 2430786-1 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
