CC2824E113R-00
ObsoleteLaird Technologies EMI
CMC 11UH 800MA 2LN 800 OHM SMD
CC2824E113R-00
ObsoleteLaird Technologies EMI
CMC 11UH 800MA 2LN 800 OHM SMD
Description
General part information

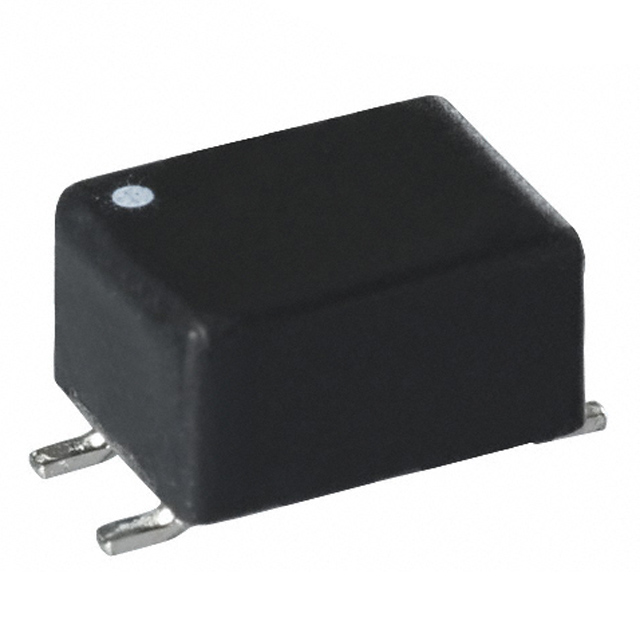

CC2824E113R-00
11 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 800 Ohms @ 200 MHz 800mA DCR 156mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CC2824E113R-00 |
|---|---|
| Current Rating (Max) | 800 mA |
| DC Resistance (DCR) (Max) | 156 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.15 in |
| Impedance | 800 Ohms |
| Inductance | 11 µH |
| Lead Count | 4 |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Horizontal |
| Package Leads | 4 Leads, 4 |
| Package Name | Horizontal |
| Size / Dimension Length | 0.295 in |
| Size / Dimension Width | 0.217 in |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 80 VDC |
